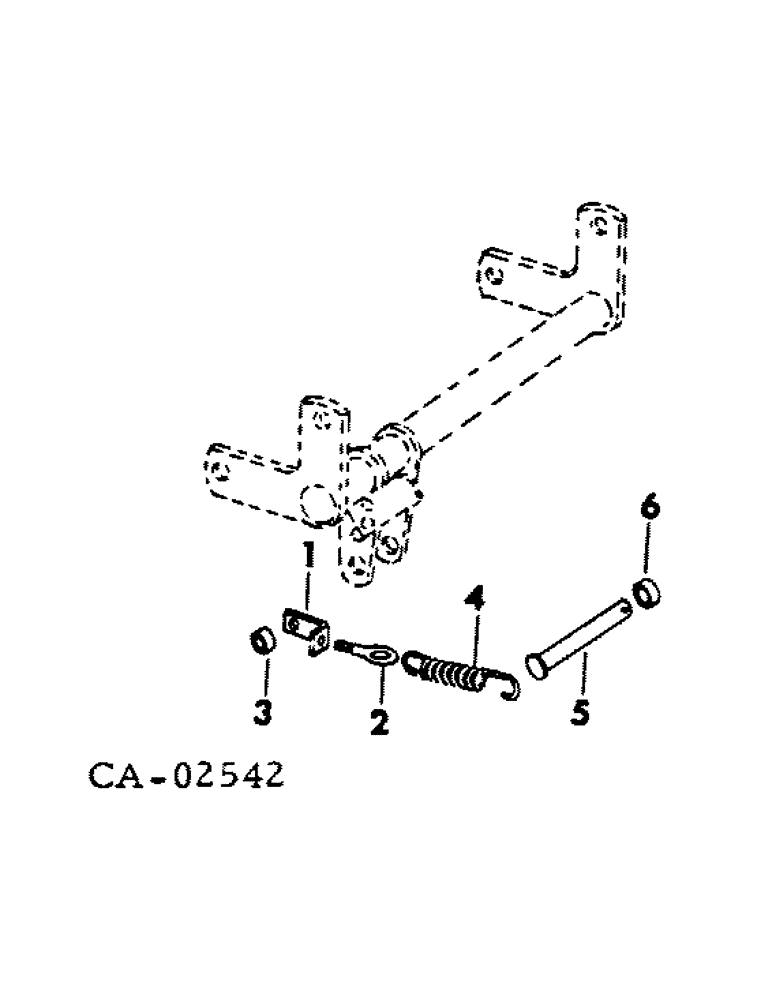

Запчасти Case IH 185 (10-03) - HYDRAULICS, LIFT RETURN ASSIST SPRING, FOR HYDRAULIC LIFT OR THREE POINT HITCH ATTACHMENTS (07) - HYDRAULICS

530639R91

PARTS ACCESSORY, lift return assist spring

1шт.

1

530641R1

BRACKET, lift return spring

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

2

667720R1

BOLT, eye

1шт.

19592R1

HARDWARE,1/4"-20, GB

NUT, 1/4-20 elastic stop

1шт.

3

404212R1

SLEEVE

SPACER, bracket

1шт.

4

530640R1

SPRING, lift return

1шт.

5

2173W

PIN, 5/8 x 5-1/2 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

10710R1

SPACER, spring

1шт.
