Запчасти Case IH 185 (08-10) - ELECTRICAL, COMBINATION REAR AND TAIL LIGHT (06) - ELECTRICAL

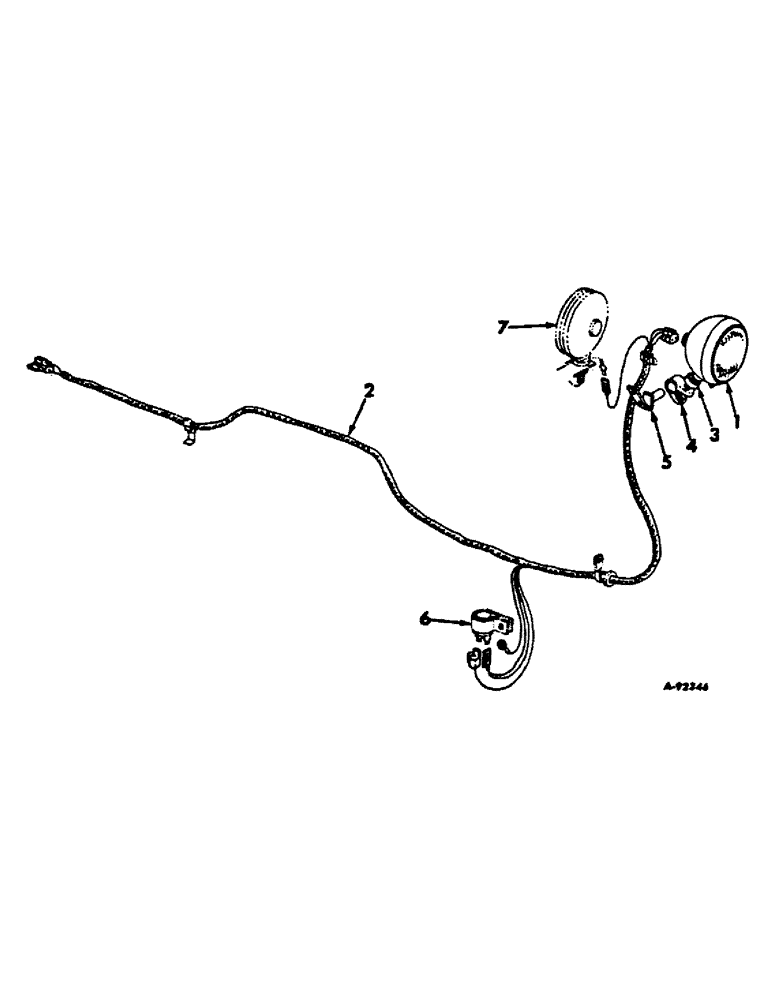

Схема запчастей Case IH 185 - (08-10) - ELECTRICAL, COMBINATION REAR AND TAIL LIGHT (06) - ELECTRICAL
3
5
2
7
1
4
6

Артикул

Название

Примечание

Количество

406850R92

PARTS ACCESSORY, combination rear and tail light

1шт.

1

377102R92

LIGHT ASSY, sealed beam combination rear and tail, serviceable items are sealed beam unit 371461R92 and lamp 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

406851R2

HARNESS

ASSY, combination rear light, 185 lo-boy tractors

1шт.

2

132050C2

CABLE ASSY, combination rear light, 184 tractor

1шт.

3

365503R1

SPACER

1шт.

4

350920R1

CLAMP

1шт.

5

406852R1

BRACKET ASSY, combination rear light

1шт.

6

FLASHER, warning light, refer to starting and lighting listing, this section

1шт.

7

LIGHT ASSY, warning, refer to starting and lighting listing, this section

1шт.

370383R1

CLIP

cable harness, 185 lo-boy tractors

1шт.

362123R1

CLIP

cable harness, 185 lo-boy tractors

1шт.

Выбрано товаров: 13
