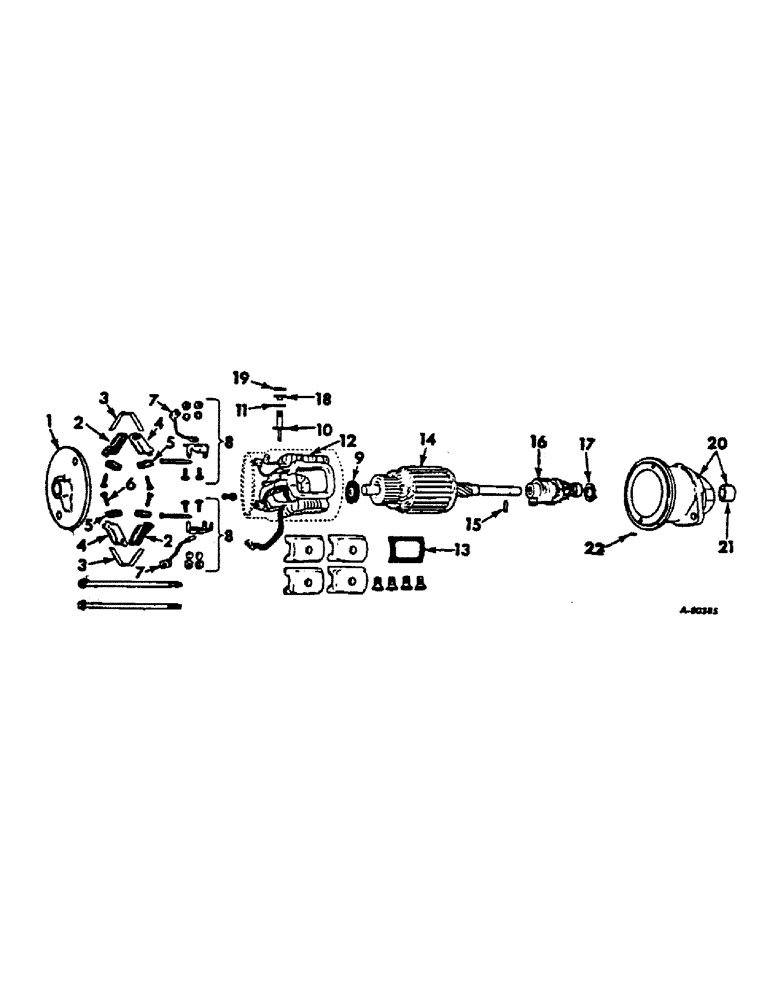

Запчасти Case IH 185 (08-02) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 12 VOLT (06) - ELECTRICAL

1

109352

MOTOR ASSY, cranking, 131174C91

1шт.

NLS

NO LONGER SERVICED

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

1

1977457

FRAME

commutator end

1шт.

2

1926618

HOLDER

insulated brush

2шт.

3

1926622

VALVE SPRING

SPRING, brush

2шт.

4

1940477

HOLDER

ground brush

2шт.

5

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

6

1967747

SCREW

commutator brush holder

2шт.

6

443527

SCREW, commutator brush ground holder

2шт.

7

1960864

BRUSH, COMMUTATOR

LEAD, ground brush

2шт.

8

1928015

BRACKET

KIT, brush holder support

2шт.

9

1914842

WASHER

commutator end brake

1шт.

10

1956246

STUD, terminal

1шт.

11

1961386

WASHER, insulated terminal stud

1шт.

12

1974435

COIL ASSY, field, 4 coils

1шт.

13

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

14

1963638

ARMATURE

1шт.

15

1963637

PIN, armature shaft

1шт.

16

1963642

DRIVE

ASSY, motor

1шт.

17

1853917

WASHER, drive end space

1шт.

198

1961387

BUSHING, insulated terminal stud

1шт.

19

805613

WASHER, insulated terminal stud

1шт.

20

1963640

HOUSING

ASSY, drive end

1шт.

21

810620

BUSHING

drive end housing

1шт.

22

809593

PIN

drive end dowel

1шт.

1939970

FUSE

BOLT, thru

2шт.
