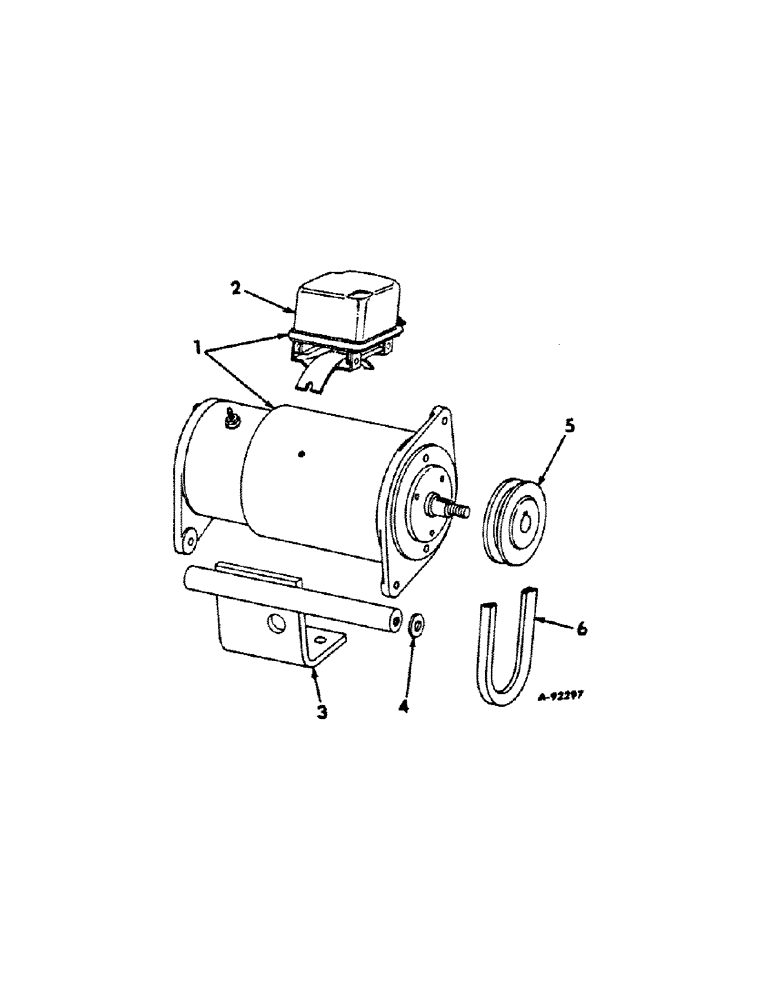

Запчасти Case IH 185 (08-01) - ELECTRICAL, GENERATOR AND CONNECTIONS, ALL 154 AND 185 LO-BOY (06) - ELECTRICAL

1

MOTOR GENERATOR ASSY, for components see list of parts under details of motor generator

1шт.

17979R1

BOLT, 5/16 x 8-1/2 mach

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

1118991

REGULATOR

ASSY, voltage

1шт.

178451

SCREW, regulator attaching

2шт.

1962276

WASHER

regulator attaching lock

2шт.

3

546730R1

BRACKET ASSY, motor generator, replaces 404844R1

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

557265R1

WASHER

.344 x 1.000 x .105 pln

1шт.

5

404964R1

PULLEY

motor generator

1шт.

6

527621R1

V-BELT,0.38" W x 48.00" L

Fan 0.38" W x 48.00" L

1шт.
