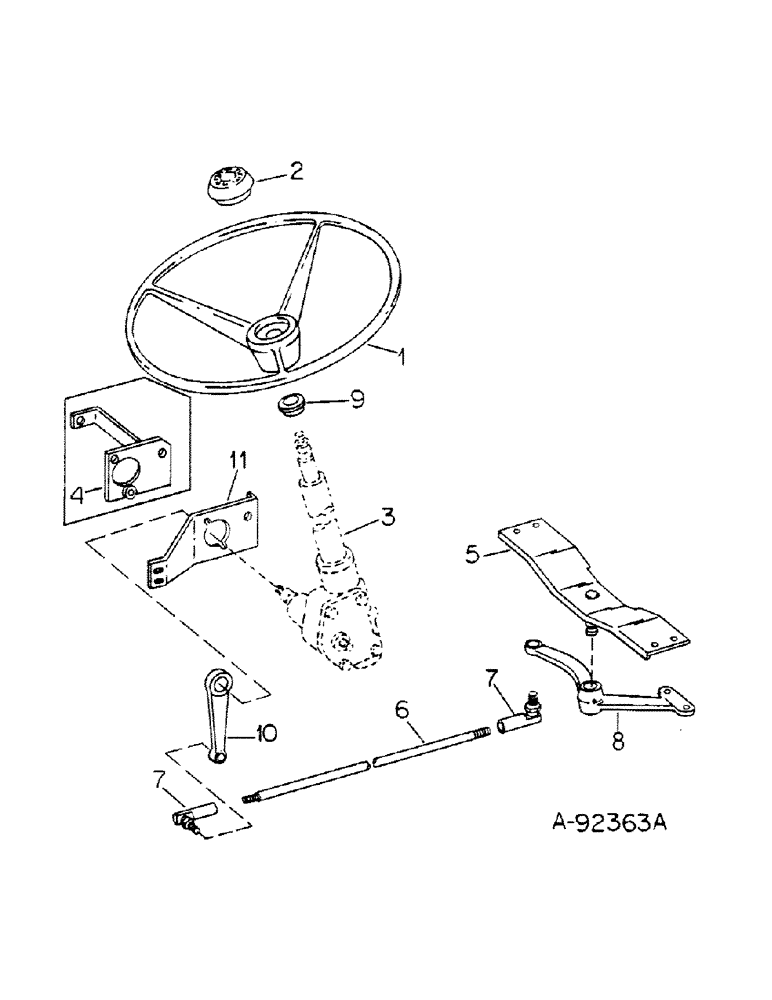

Запчасти Case IH 185 (05-02) - STEERING, STEERING AND SUPPORTS (04) - STEERING

1

404601R1

WHEEL

steering

1шт.

2

533742R1

CYLINDER END CAP

CAP, steering, replaces 393157R2

1шт.

3

404589R91

GEAR

ASSY, steering, for components, see list of parts under details of steering gear

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

4

544836R1

PLATE

ASSY, steering support, cub 154 & 185 lo-boy tractors, also order shim washers, 23408R1 or 61252H or 588099R1 (or as required)

1шт.

404594R1

SPACER, steering support

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znp hex-hd cap

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

61252H

WASHER

15/32 x 3/4 x 11 ga (or as required)

1шт.

23408R1

WASHER

15/32 x 3/4 x 16 ga (or as required)

1шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga (or as required)

1шт.

5

404597R1

SUPPORT

ASSY, steering lever

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 slt hex.

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

6

404595R1

ROD

drag link, 22 inches

1шт.

7

529430R1

JOINT

drag link ball, also order nut, 125250 & pin, 103375

2шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 CDP slt hex.

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

2шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

8

404600R1

LEVER

steering

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

9

400501R1

BEARING

column upper

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 type 5

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

10

404596R1

ARM

steering

1шт.

11

106739C1

SUPPORT

steering gear, bolt into clutch yoke bracket, for 184 tractor

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

25709R1

WASHER

.406 x .812 x .089 HDN

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.
