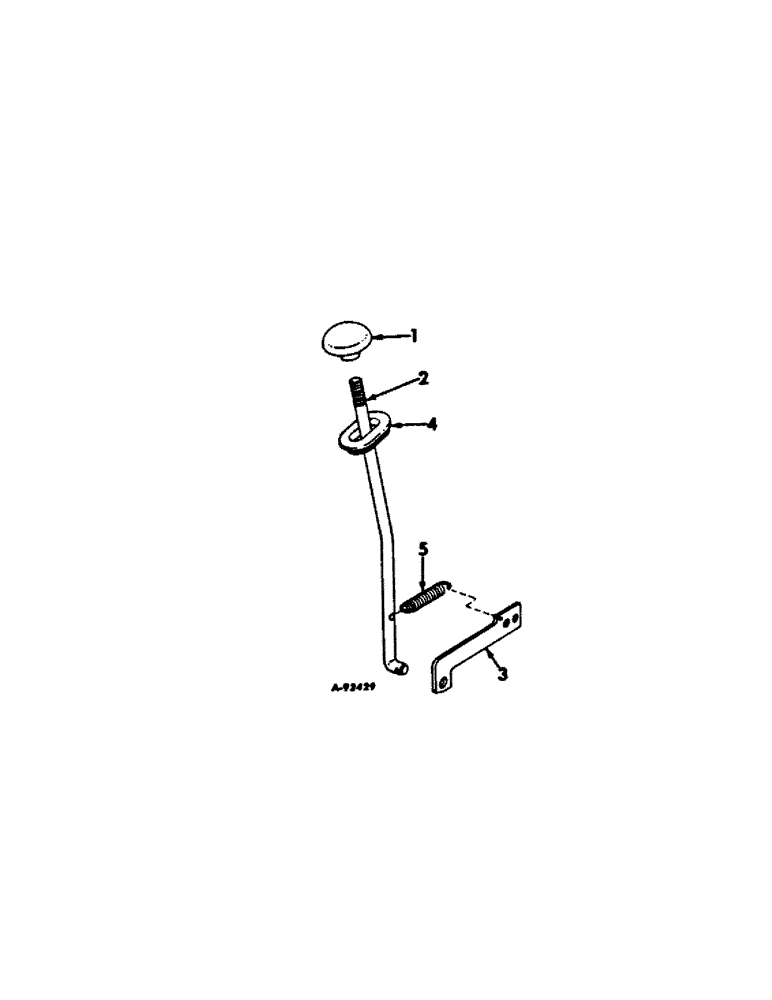

Запчасти Case IH 185 (07-18[1]) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF CONTROLS, CUB 154 AND 185 LO-BOY TRACTORS (04) - Drive Train

1

404931R1

KNOB

control rod

1шт.

2

404930R2

ROD

control

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19981R1

PIN,3/16" x 2 5/8", Coiled

1шт.

3

404928R1

SUPPORT

ARM, clutch control

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 znd hex-hd cap

1шт.

19694R1

LOCK NUT,1/4"-28, GB

NUT, 1/4-28 znp nylon insert

1шт.

4

404929R1

GROMMET

GUIDE, PTO control rod

1шт.

5

15219E

SPRING

1шт.
