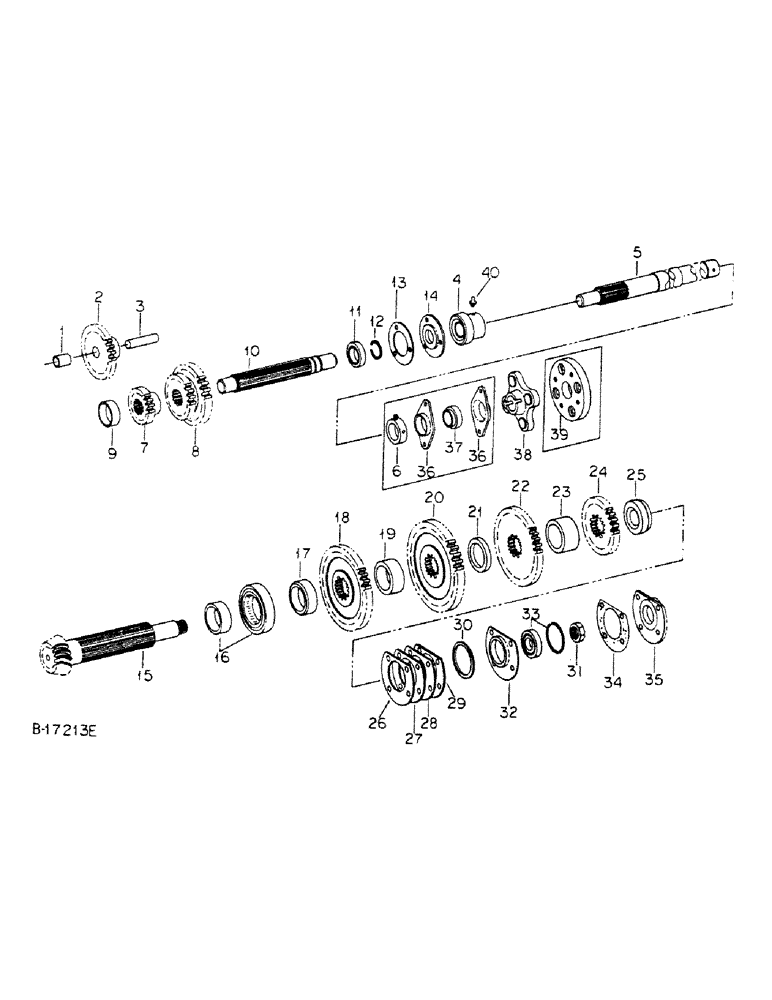

Запчасти Case IH 185 (07-07) - DRIVE TRAIN, TRANSMISSION, CUB 154 AND 185 LO-BOY TRACTORS (04) - Drive Train

1

350871R1

BUSHING

GEAR

1шт.

2

350870R11

PINION

GEAR ASSY, reverse idler

1шт.

3

350869R1

PIN

SHAFT, reverse idler

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

404671R1

RETAINER

THROWOUT BEARING

1шт.

5

404670R4

SHAFT

main clutch, tractors w/o creeper drive, cub 154 lo-boy tractors w/serial no. 18708 and below; 31" long

1шт.

5

543603R1

SHAFT

main clutch, tractors w/o creeper drive, cub 154 lo-boy tractors w/serial no. 18709 and above and all cub 185 lo-boy tractors ; 29" long

1шт.

5

530422R2

SHAFT

main clutch, tractor w/creeper drive, cub 154 lo-boy tractor w/serial no. 18708 and below; 24 1/2" long

1шт.

5

543679R1

SHAFT

main clutch, tractors w/creeper drive, cub 154 lo-boy tractor w/serial no. 18709 and above, all cub 185 lo-boy tractors; 22 1/2" long

1шт.

6

455102R21

COLLAR

W/SET SCREW, locking, cub 154 lo-boy tractors w/serial no. 18708 and below

1шт.

7

350867R1

PINION

GEAR, 1st and reverse speed sliding 13T

1шт.

8

364520R1

GEAR

2nd & 3rd speed sliding 16T & 26T

1шт.

9

357931R91

NEEDLE BEARING

spline shaft rear

1шт.

10

404667R1

SHAFT

main transmission spline

1шт.

11

ST542

BALL BEARING,25mm ID x 47mm OD x 12mm W

BEARING, shaft front

1шт.

12

351539R1

RING

bearing lock

1шт.

13

350866R1

GASKET

shaft oil seal, tractor w/o creeper drive

1шт.

14

528810R91

OIL SEAL

shaft oil, tractor w/o creeper drive

1шт.

14

530423R1

RETAINER

bearing, tractor w/creeper drive

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

15

351531R1

COUNTERSHAFT AND BEVEL PINION, 10T

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

16

350857R91

BEARING, ROLLER, CYL,30mm ID x 62.99mm OD x 16mm W

countershaft rear

1шт.

17

351532R1

SPACER

rev speed gear & countershaft bearing

1шт.

18

350848R1

PINION

GEAR, reverse speed, 35T

1шт.

19

351532R1

SPACER

1st & reverse speed gear

1шт.

20

350850R1

GEAR

1st speed

1шт.

21

351533R1

WASHER

SPACER, 1st and 2nd speed gear

1шт.

22

364519R1

GEAR

2nd speed, 36T

1шт.

23

350853R1

SPACER

2nd and 3rd speed gear

1шт.

24

350854R1

PINION

GEAR, 3rd speed, 26T

1шт.

25

385689R2

SPACER

3rd speed gear & countershaft bearing

1шт.

26

350841R2

SHIM

bearing retainer, extra light (or as required)

2шт.

27

350842R2

SHIM

brg retainer, light (or as required)

2шт.

28

350843R2

SHIM

bearing retainer, medium (or as required)

1шт.

29

350844R2

SHIM

bearing retainer, heavy (or as required)

1шт.

30

350840R1

RING

retainer seal

1шт.

31

70119D

NUT

countershaft

1шт.

32

385688R1

RETAINER

bearing

1шт.

33

ST668

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, countershaft front

1шт.

34

350846R1

GASKET

bearing retainer cap

1шт.

35

350845R1

CAP

bearing retainer

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

4шт.

36

612031R1

FLANGED BEARING

bearing, 154 lo-boy tractors w/serial no. 18708 and below

2шт.

562335R1

CARRIAGE BOLT,5/16" - 18 x 3/4", Class 5

BOLT, 5/16-18 x 3/4 sq-nk brg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

528342R92

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

drive shaft clutch, replaces 455965R91, 154 lo-boy tractors w/serial no. 18708 and below

1шт.

38

531709R1

HUB

ASSY, drive coupler, replaces 404669R91, also order nut, 9413994, screw, 531618R1 and washer, 120214 on 154 lo-boy tractors w/serial no. 15071 and below

1шт.

20133R1

DOWEL,5/16" x 1 3/4"

PIN, 51/6 x 1-3/4 dowel, 154 lo-boy tractors w/ serial no. 15071 and below

1шт.

9413994

LOCK NUT,5/16"-18, GC

NUT, 5/16-18 CAD hex. lock, serial no. 15072 & above

1шт.

531618R1

HEX SOC SCREW

SCREW, drive coupler hub, serial no. 15072 & above

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , S/N 15072 & above 5/16"

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

39

404668R2

RETAINER

drive coupler, 154 lo-boy tractors w/serial no. 18708 and below

1шт.

9409039

BOLT, 3/8-24 x 1-3/4 hex-hd lkg

4шт.

40

20810R1

LUBE NIPPLE,#10-32 x .50" lg

FITTING, no. 10-32 NF 2A special str lub

1шт.
