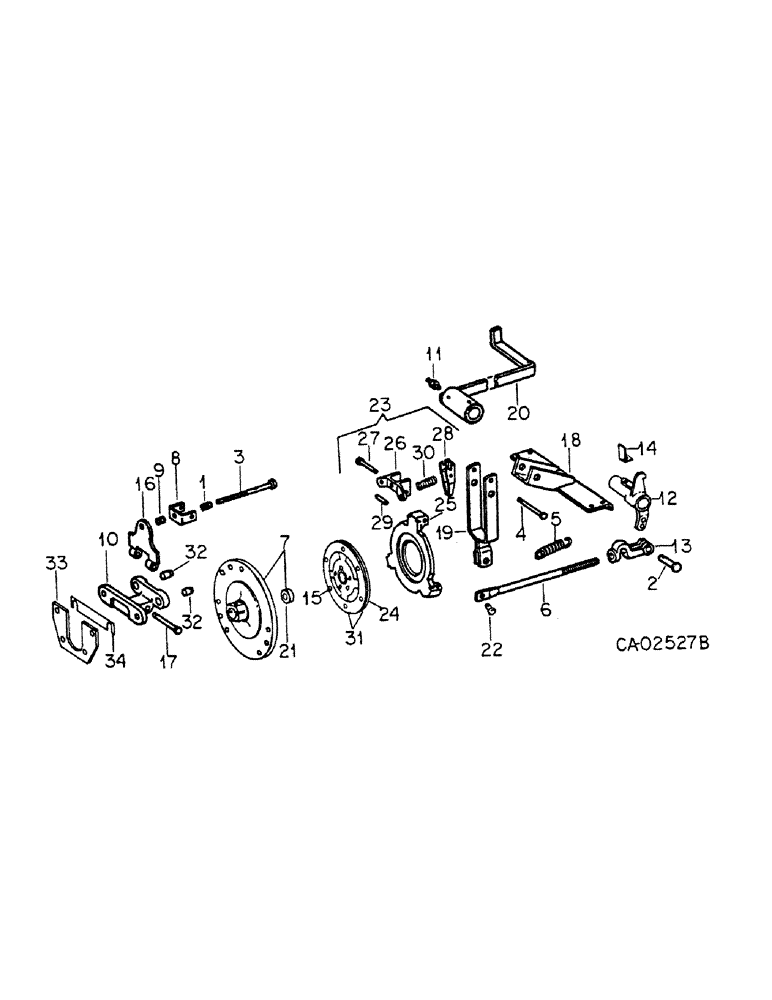

Запчасти Case IH 185 (07-03) - DRIVE TRAIN, CLUTCH AND CONTROLS, CUB 154 LO-BOY W/ S/N 21492 & ABOVE, & ALL CUB 185 LO-BOY TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
404651R1
SPRING
clutch brake teaser
1шт.
2
82663H
PIN
clutch rod adjustable yoke
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
3
404652R1
BOLT,5/16" - 18 x 4 1/2"
clutch brake
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
376308R1
SPRING WASHER
clutch brake spring retainer
1шт.
4
404650R1
PIN,7.77mm OD x 73.91mm L
clutch brake yoke
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
5
404654R1
SPRING
clutch return
1шт.
6
543942R1
ROD
clutch operating, tractor w/o creeper drive
1шт.
6
530424R1
BOLT
ROD, clutch operating, tractors w/creeper drive
1шт.
7
531708R11
PLATE
ASSY, pressure
1шт.
9413994
LOCK NUT,5/16"-18, GC
NUT, 5/16-18 CAD hex. lock
1шт.
531619R1
BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 8
SCREW, pressure plate
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
8
404649R1
YOKE
clutch brake
1шт.
9
383892R2
SPRING
clutch brake stabilizer
1шт.
10
404641R1
RETAINER
clutch brake
1шт.
179880
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5
SCREW, 1/2-13 x 7/8 hex-hd cap
2шт.
11
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
12
543943R1
LEVER
clutch pedal
1шт.
12
546247R1
LEVER, clutch pedal, tractors equipped w/creeper drive
1шт.
114502
JAM NUT,Jam, 5/16"-18, G5
1шт.
102445
SCREW, 5/16-18 x 1 sq-hd ov-pt set
1шт.
13
49401D
YOKE
clutch rod adjusting
1шт.
13
116537
SPACER
YOKE, clutch rod adjusting, tractors equipped w/creeper drive
1шт.
NLS
NO LONGER SERVICED
7/16-20 znd hex
2шт.
14
543944R1
STRIP
safety switch release lever
1шт.
15
103384H
RIVET, clutch facing
6шт.
16
404645R1
ARM
ASSY, brake
1шт.
17
404648R1
PIN
lever
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
18
404677R1
BRACKET
ASSY, clutch release
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
19
404675R1
YOKE
ASSY, clutch release
1шт.
19
543936R1
YOKE
ASSY, clutch release, tractors equiped w/creeper drive
1шт.
90560H
CLEVIS PIN,1/2" x 2.766"
PIN, 1/2 x 2-49/64 rod end
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
17/32 x 1-1/16 x .095
1шт.
20
547014R1
PEDAL
ASSY, clutch
1шт.
21
404666R1
BUSHING,22.25mm ID x 22.28mm OD x 19.18mm L
pressure plate
1шт.
22
357369R1
AXLE PIN
PIN, clutch rod end
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
23
404639R94
PLATE
ASSY, clutch pressure, composed of (3) bracket 405983R1, (1) plate 405982R1, (3) pin 60342C1, (3) lever 405985R1, (3) ring 60343C1, (3) pin 405986R1, (3) spring 405987R3
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
24
404640R93
DISC
W/FACINGS ASSY, clutch driven
1шт.
25
405982R1
PLATE
pressure
1шт.
26
405983R1
BRACKET
lever
3шт.
27
60342C1
PIN
lever pivot
3шт.
60343C1
RING
retaining
3шт.
28
405985R1
LEVER
release
3шт.
29
405986R1
PIN
pressure plate
3шт.
30
405987R3
SPRING
pressure
3шт.
31
405988R91
KIT
PACKAGE, clutch facing, consists of two facings and six rivets, 103384H
1шт.
32
404642R1
LINING
ASSY, brake
2шт.
33
530425R1
BRACKET
clutch brake
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
137159
COTTER PIN
3/32" x 5/8"
2шт.
22522R1
BOLT, 3/8 x 7/8 CAD type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
34
58494C1
SPACER
clutch brake retainer
1шт.
404671R1
RETAINER
BEARING throwout, as illustrated on page 7-7, Ref. 4
1шт.
Выбрано товаров: 69
