Запчасти Case IH 185 (15-02) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS, INSIDE MOUNTED, SPLIT TYPE Wheels & Traction

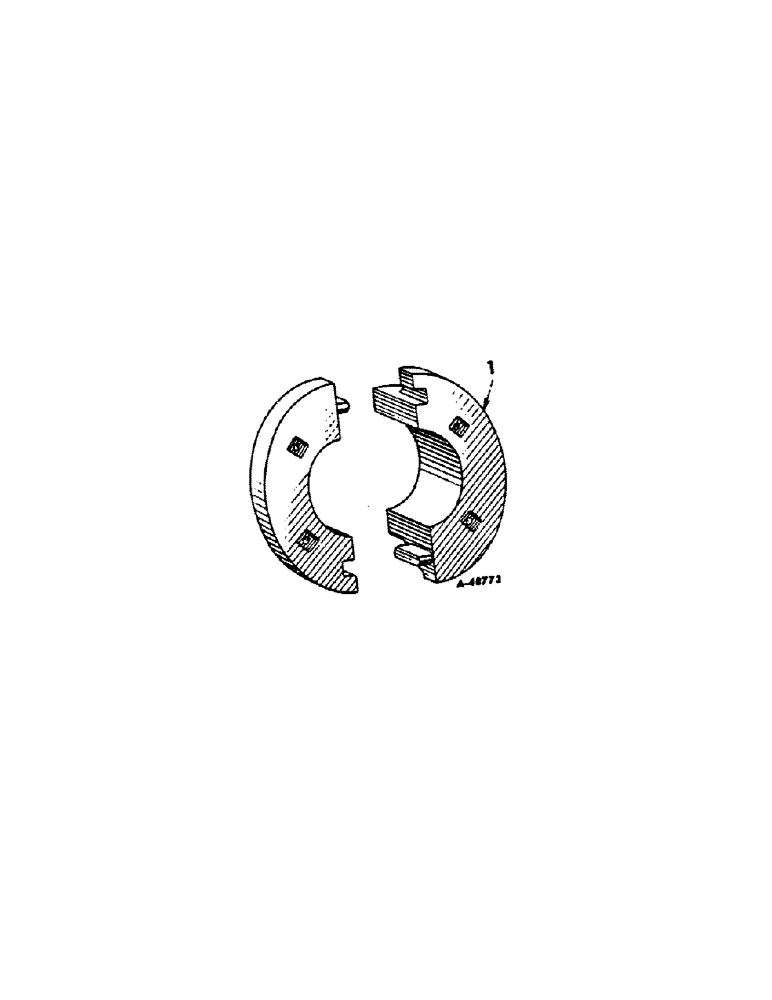

Схема запчастей Case IH 185 - (15-02) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS, INSIDE MOUNTED, SPLIT TYPE Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

368838R1

WEIGHT

front wheel inside, 25 lbs

4шт.

20740R1

BOLT, 1/2-13 x 3-1/4 znd sq-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

1

368838R1

WEIGHT

front wheel inside, 25 lbs, with one outside weight

4шт.

22313R1

BOLT, 1/2-13 x 4-1/4 znd sq-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

1

368838R1

WEIGHT

front wheel inside, 25 lbs, with two outside weights

4шт.

22314R1

BOLT, 1/2-13 x 5-3/4 znd sq-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

530644R91

PARTS ACCESSORY, rear wheel spacer, consists of the following

1шт.

Выбрано товаров: 13
