Запчасти Case IH 185 (15-02[3]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS, OUTSIDE MOUNTED Wheels & Traction

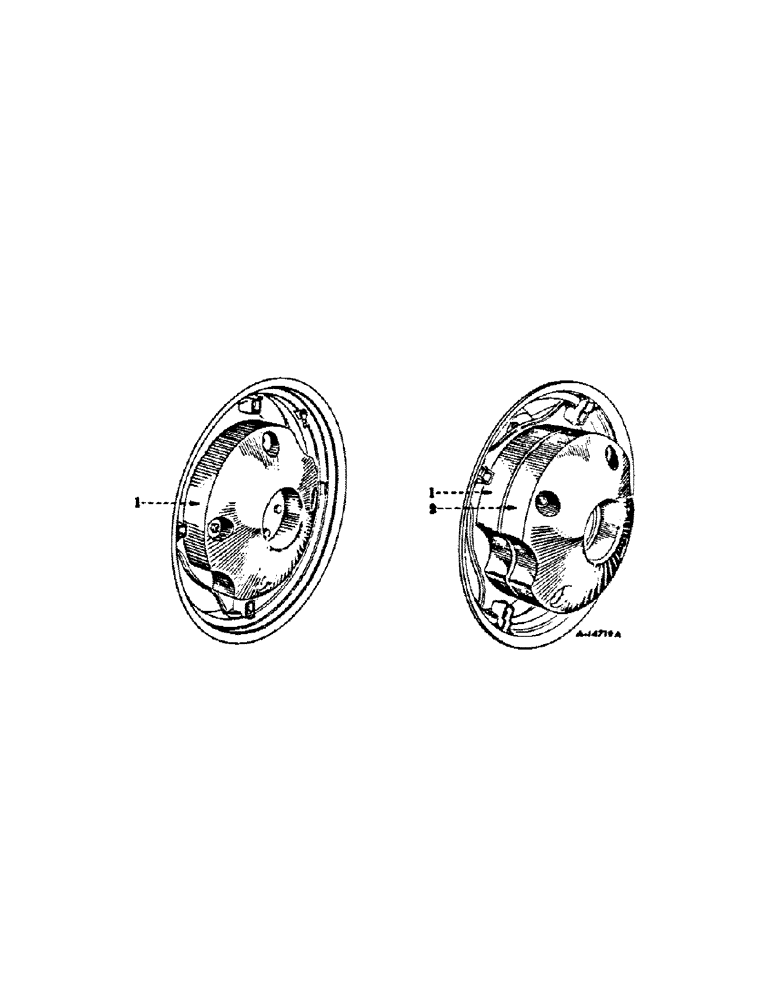

Схема запчастей Case IH 185 - (15-02[3]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS, OUTSIDE MOUNTED Wheels & Traction
1
2
1

Артикул

Название

Примечание

Количество

1

351374R1

WEIGHT, rear wheel, first position

2шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 crg type 1

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

351374R1

WEIGHT, rear wheel, second position

2шт.

22311R1

BOLT, 1/2-13 x 6-1/4 znd sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 8
