Запчасти Case IH 185 (15-01[2]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

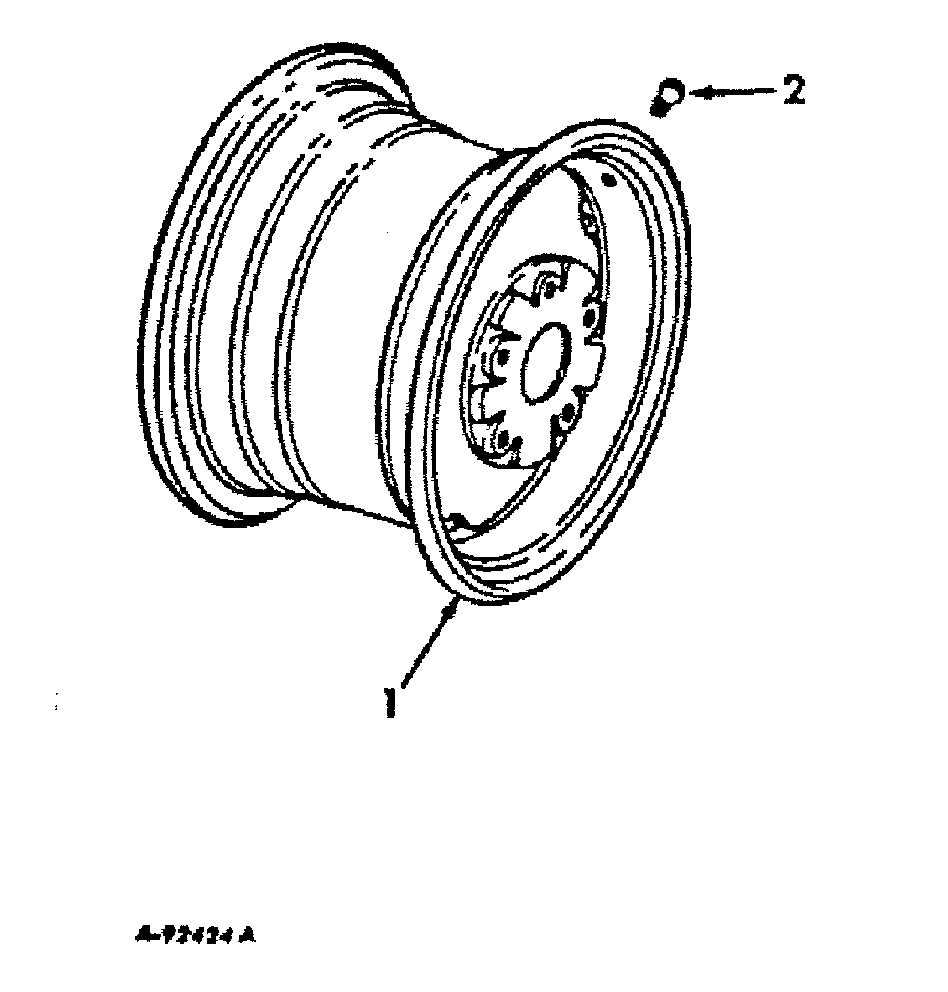

Схема запчастей Case IH 185 - (15-01[2]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction
1
2

Артикул

Название

Примечание

Количество

1

405723R1

WHEEL ASSY, disc type rear, W11C-16.1 rim for 13.6-16 tire or 12.4-16 tire

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

rear wheel mounting

10шт.

1

404837R1

WHEEL ASSY, disc type rear, W7-24 rim for 8.3-24 or 9.5-24 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

disc rear wheel mounting

10шт.

2

387841R91

VALVE

TR-413 tubeless type

2шт.

2

27549R1

VALVE STEM

TR-618A Air-liquid tubeless

2шт.

Выбрано товаров: 6
