Запчасти Case IH 185 (12-21[1]) - POWER, C-60 ENGINE, FUEL TANK, SUPPORTS AND PIPING Power

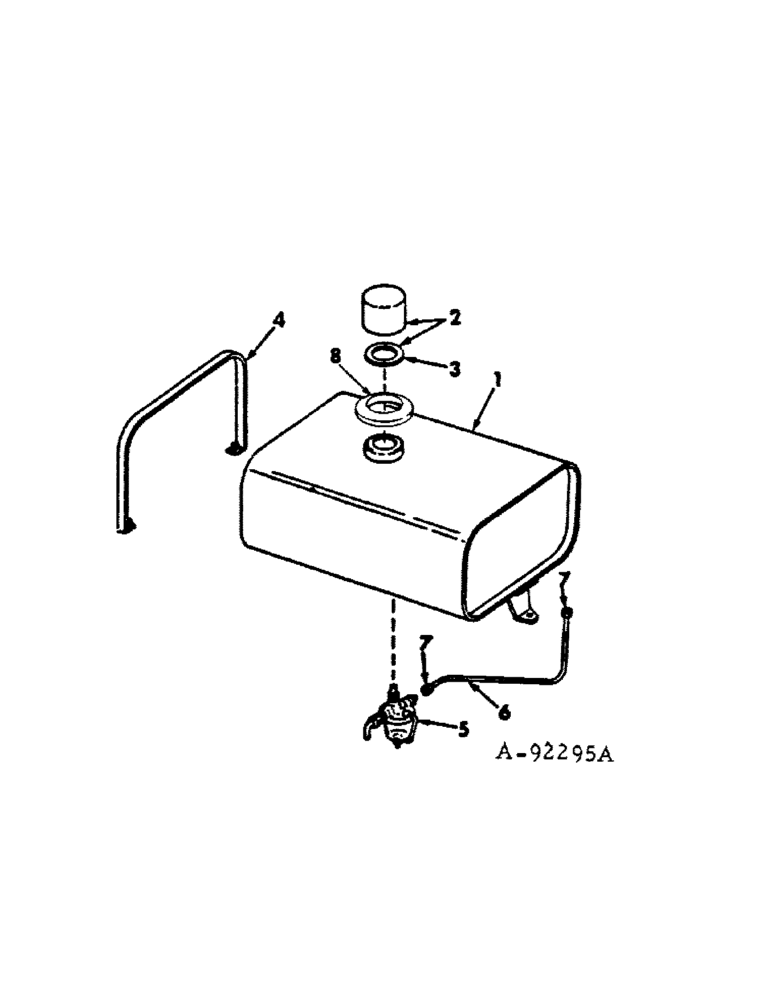

Схема запчастей Case IH 185 - (12-21[1]) - POWER, C-60 ENGINE, FUEL TANK, SUPPORTS AND PIPING Power
1
7
2
7
6
5
3
8
4

Артикул

Название

Примечание

Количество

1

404946R2

TANK

ASSY, fuel, optional with 61119C1

1шт.

1

61119C1

TANK ASSY, fuel, optional with 404946R2

1шт.

103026

NUT,3/8"-24, G5

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

1шт.

404831R1

SPACER, fuel tank rear

1шт.

2

23995DC

FILLER CAP

CAP W/GASKET, fuel tank filler, replaces 361910R91

1шт.

3

23977DB

GASKET

fuel tank filler cap

1шт.

4

404953R1

STRAP ASSY, hold-down

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

SCREW, 3/8-16 x 1/2 znd hex-hd cap

2шт.

5

61782C91

STRAINER ASSY.

STRAINER W/COUPLING NUT ASSY, fuel, for components see list of parts under details of fuel strainer

1шт.

5

61782C91GV

BOWL

Value, Fuel Strainer

1шт.

6

404952R11

TUBE ASSY, carburetor to fuel strainer, cub 154 lo-boy tractors w/serial no. 18708 and below

1шт.

6

544022R11

TUBE ASSY, carburetor to fuel strainer, cub 154 lo-boy tractors w/serial no. 18709 and above

1шт.

6

61718C91

TUBE

ASSY, carburetor to fuel strainer, 184 tractors and cub 185 lo-boy tractors

1шт.

7

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 fuel pipe coupling

2шт.

8

106953C1

SEAL

SEAL, filler neck

1шт.

Выбрано товаров: 16
