Запчасти Case IH 185 (12-12) - POWER, C-60 ENGINE, EXHAUST AND INTAKE MANIFOLD, GASKET AND EXHAUST MUFFLER Power

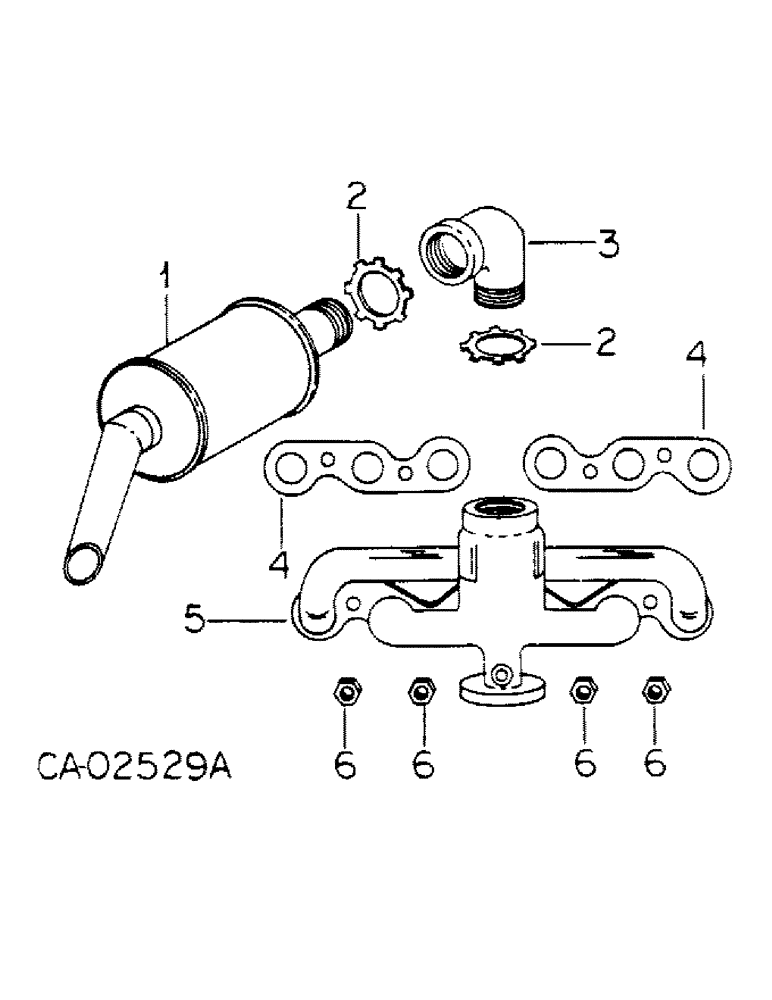

Схема запчастей Case IH 185 - (12-12) - POWER, C-60 ENGINE, EXHAUST AND INTAKE MANIFOLD, GASKET AND EXHAUST MUFFLER Power
1
3
4
6
6
6
4
6
2
2
5

Артикул

Название

Примечание

Количество

1

404914R1

MUFFLER

ASSY, exhaust

1шт.

2

404915R1

NUT

lock

2шт.

3

127823

ELBOW, 1-1/4 90 deg street

1шт.

4

251233R1

GASKET

exhaust and intake manifold

2шт.

5

405023R2

MANIFOLD

exhaust and intake

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 znd auto. sq-hd pipe

1шт.

6

251176R1

NUT

exhaust and intake manifold stud

4шт.

Выбрано товаров: 7
