Запчасти Case IH 185 (12-09) - POWER, C-60 ENGINE, CYLINDER HEAD AND VALVES Power

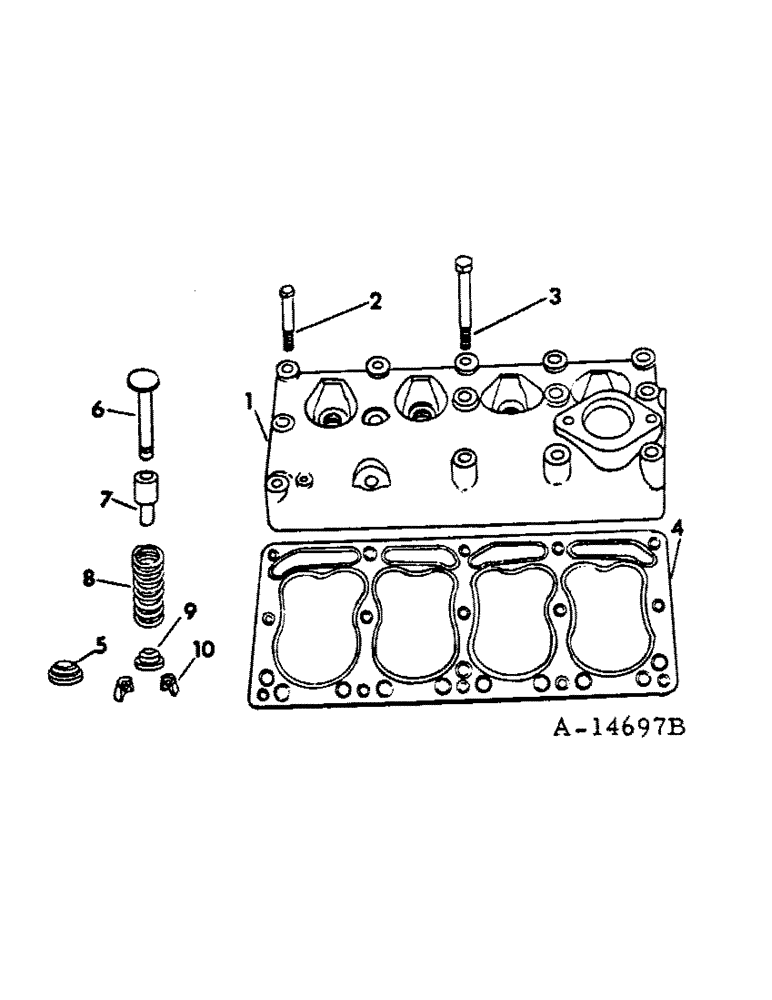

Схема запчастей Case IH 185 - (12-09) - POWER, C-60 ENGINE, CYLINDER HEAD AND VALVES Power
7
5
2
9
4
8
1
10
3
6

Артикул

Название

Примечание

Количество

1

355691R2

HEAD (CYLINDER)

HEAD, cylinder

1шт.

405020R1

STUD

engine water outlet

1шт.

2

251230R1

BOLT (SPREADER),3/8" x 2 3/8"

SCREW, cyl head short cap

9шт.

3

251231R1

SCREW

cyl head long cap

6шт.

4

251229R2

GASKET

cylinder head

1шт.

5

357167R91

ROTATOR

ROTOCAP, exhaust valve

4шт.

6

251260R1

VALVE

intake

4шт.

6

251261R2

VALVE, ENG EXHAUST,

VALVE, exhaust

4шт.

7

352973R3

GUIDE

valve, will work for 251360R2

8шт.

8

251262R2

VALVE SPRING

SPRING, valve, 4 used on tractors w/rotocap, 8 used on tractors w/o rotocap

1шт.

8

357168R1

SPRING

exhaust valve, tractors w/rotocap

4шт.

9

251263R2

SEAT

valve spring, 4 used on tractors w/rotocap, 8 used on tractors w/o rotocap

1шт.

10

46209D

BUCKET TOOTH KEY

KEY, valve spring seat

16шт.

Выбрано товаров: 13
