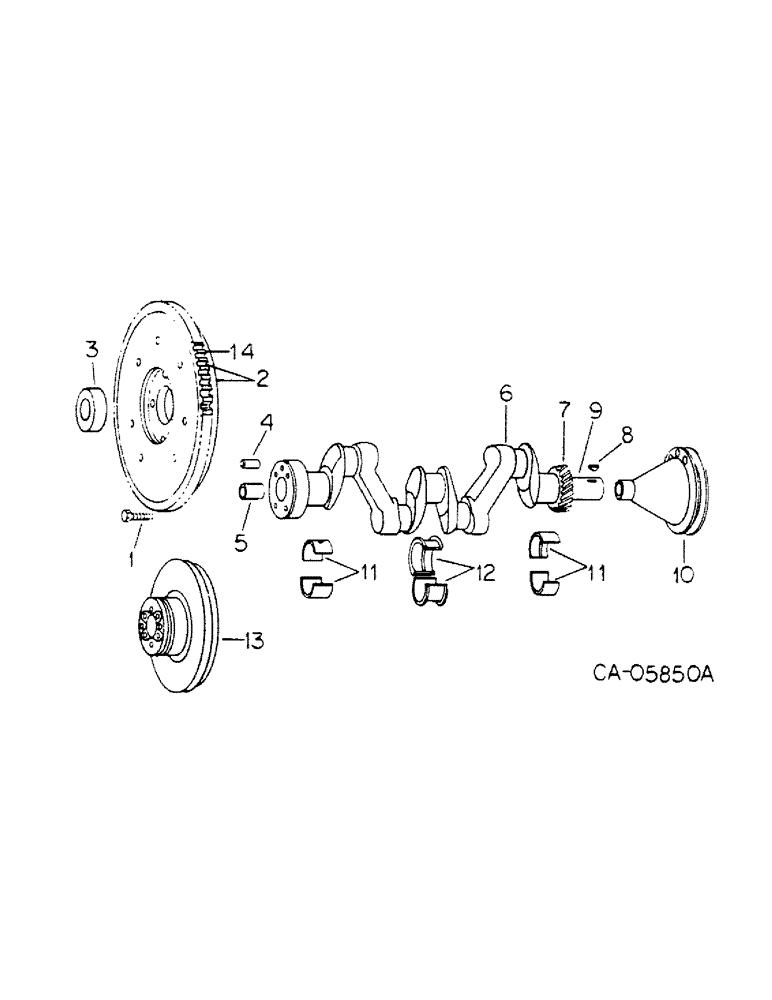

Запчасти Case IH 185 (12-08) - POWER, C-60 ENGINE, CRANKSHAFT AND RELATED PARTS Power

1

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, 3/8-24 x 1-1/4 type 4 flywheel, used w/all machines except cub 154 lo-boy tractors w/serial no. 277102 and below

4шт.

1

9409039

BOLT, 3/8-24 x 1-3/4 flywheel, for flywheel, 406560R1, cub 154 lo-boy tractors w/serial no. 277102 and below

4шт.

2

131293C91

FLYWHEEL, clutch forward, 184 tractors

1шт.

3

64927C91

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

clutch pilot, 184 tractors

1шт.

4

24550D

PIN

flywheel dowel

1шт.

5

251266R1

BUSHING,15.93mm ID x 20.69mm OD x 27.1mm L

BUSHING, clutch pilot

1шт.

6

527821R92

CRANKSHAFT W/BEARINGS, std, composed of (1) crankshaft (NSS), (1) bushing 251266R1, (1) dowel 24550D, (2) bearing 357219R91, (1) bearing 357216R91, (4) bearing 527458R11

1шт.

7

251265R1

PINION

crankshaft, 18T

1шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Crankshaft pinion #6, 5/32" x 5/8", HT

1шт.

9

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Fan drive pulley #6, 5/32" x 5/8", HT

1шт.

10

528660R1

PULLEY

fan drive, cub 154 lo-boy tractors

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

10

107440C1

PULLEY

fan drive, 184 tractors and cub 185 lo-boy tractors

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

351107R1

WASHER

.531 x 2.00 x .25

1шт.

11

357219R91

BEARING,41.79mm ID x 45.64mm OD x 26.99mm W

ASSY, crankshaft front and rear std

2шт.

11

357258R91

BEARING SET

ASSY, crankshaft front and rear, .002 U/S

2шт.

11

376622R91

BEARING ASSY

BEARING ASSY, crankshaft front and rear, .010 U/S

2шт.

11

376629R91

BEARING ASSY

ASSY, crankshaft front and rear, .020 U/S

2шт.

11

357264R91

BEARING SET

BEARING ASSY, crankshaft front and rear, .030 U/S

2шт.

12

357216R91

BEARING LINER

BEARING ASSY, crankshaft center-std

1шт.

12

357261R91

BEARING SET

ASSY, crankshaft center, .002 U/S

1шт.

12

376625R91

BEARING ASSY

BEARING ASSY, crankshaft center, .010 U/S

1шт.

12

376632R91

JOURNAL

BEARING ASSY, crankshaft center, .020 U/S

1шт.

12

357267R91

BEARING SET

ASSY, crankshaft center, .030 U/S

1шт.

13

534542R1

FLYWHEEL

replaces 406560R1, cub 154 lo-boy and cub 185 lo-boy tractors

1шт.

14

251270R2

GEAR WHEEL

GEAR, flywheel ring, 84T

1шт.
