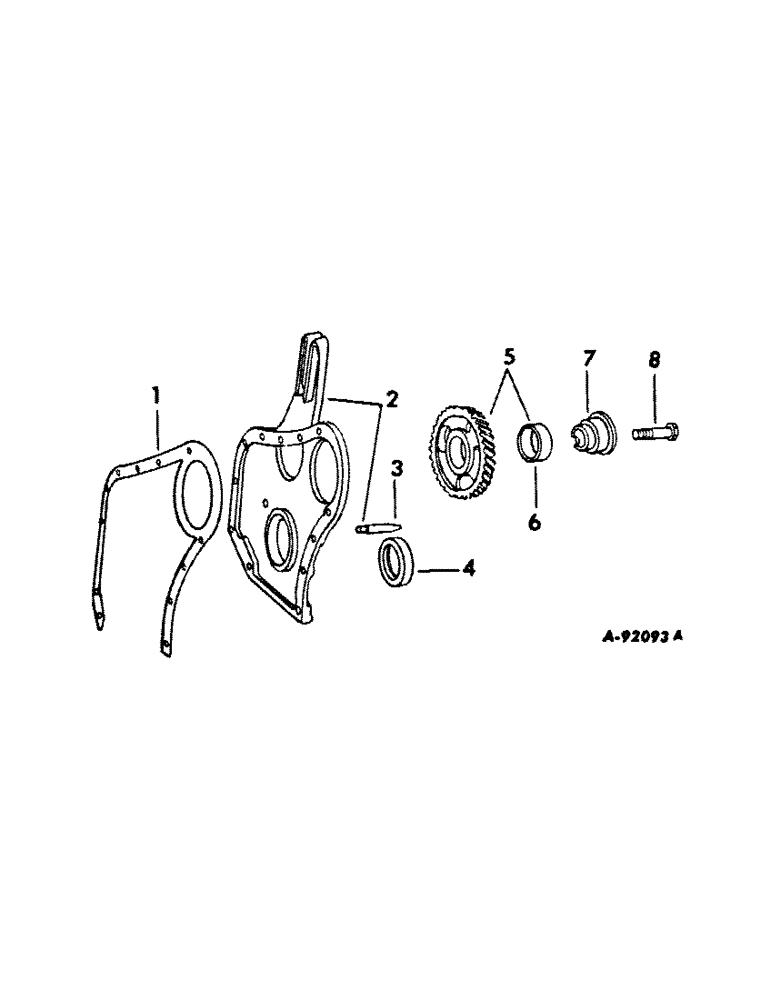

Запчасти Case IH 185 (12-07) - POWER, C-60 ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR Power

1

355945R1

GASKET

crankcase front cover

1шт.

2

351674R12

COVER

ASSY, crankcase front, also order seal assy, 378193R91

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

251367R1

POINTER, timing

1шт.

4

378193R91

SEAL

W/RING, crankcase front cover oil, replaces 49177D

1шт.

5

251374R11

PINION

GEAR W/BUSHING, idler

1шт.

6

251375R1

BUSHING,12.68mm ID x 47.73mm OD x 19.66mm L

idler gear

1шт.

7

251376R1

HUB

SHAFT, idler gear

1шт.

8

358248R1

BOLT,1/2" - 13 x 2 1/4"

idler gear shaft

1шт.
