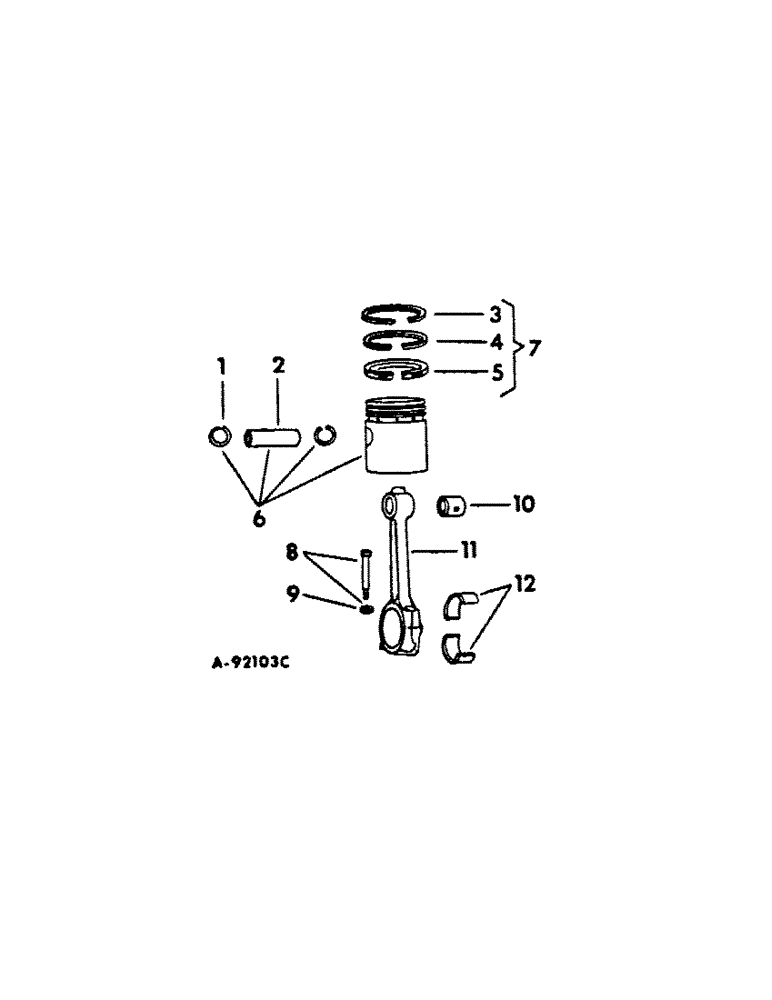

Запчасти Case IH 185 (12-03) - POWER, C-60 ENGINE, CONNECTING ROD AND PISTONS Power

1

251242R1

RING

RETAINER, piston pin

8шт.

2

251241R2

PISTON PIN

PIN, piston

4шт.

2

352084R1

PIN

piston, .005 O/S

4шт.

3

RING, compression, top or first groove, not serviced separately, order piston ring package

1шт.

4

RING, compression, second groove, not serviced separately, order piston ring package

1шт.

5

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring package

1шт.

6

405007R1

PISTON

ASSY, std, aluminum, dome top pistons

4шт.

DOES NOT COME WITH ITEM 1 AND 2 AS INDICATED IN THE ILLUSTRATION.

1шт.

6

530980R1

PISTON

ASSY, .010 O/S, aluminum, dome top pistons

4шт.

6

405008R11

PISTON

ASSY, .020 O/S, aluminum, dome top pistons

4шт.

6

531532R11

PISTON

ASSY, .030 O/S, aluminum, dome top pistons

4шт.

6

405009R11

PISTON

ASSY, .040 O/S, aluminum, dome top pistons

4шт.

7

539354R1

PISTON RING SET

PACKAGE, piston ring service, std and .010 o/s

4шт.

7

539355R1

RING

PACKAGE, piston ring service, .020 O/S

4шт.

7

539356R1

SET

PACKAGE, piston ring service, .030 O/S

4шт.

7

539357R1

RING

PACKAGE, piston ring service, .040 O/S

4шт.

8

251249R21

BOLT

ASSY, connecting rod

8шт.

9

353831R1

NUT

connecting rod bolt

8шт.

10

251247R1

BEARING

BUSHING, piston pin

4шт.

11

527457R11

ROD, CONNECTING

ROD ASSY, connecting

4шт.

12

527458R11

BEARING

ASSY, connecting rod, std

4шт.

12

527460R11

BEARING

ASSY, connecting rod, .002 U/S

4шт.

12

527461R11

BEARING ASSY

BEARING ASSY, connecting rod, .010 U/S

4шт.

12

527462R11

BEARING ASSY

BEARING ASSY, connecting rod, .020 U/S

4шт.

12

527463R11

BEARING ASSY

BEARING ASSY, connecting rod, .030 U/S

4шт.
