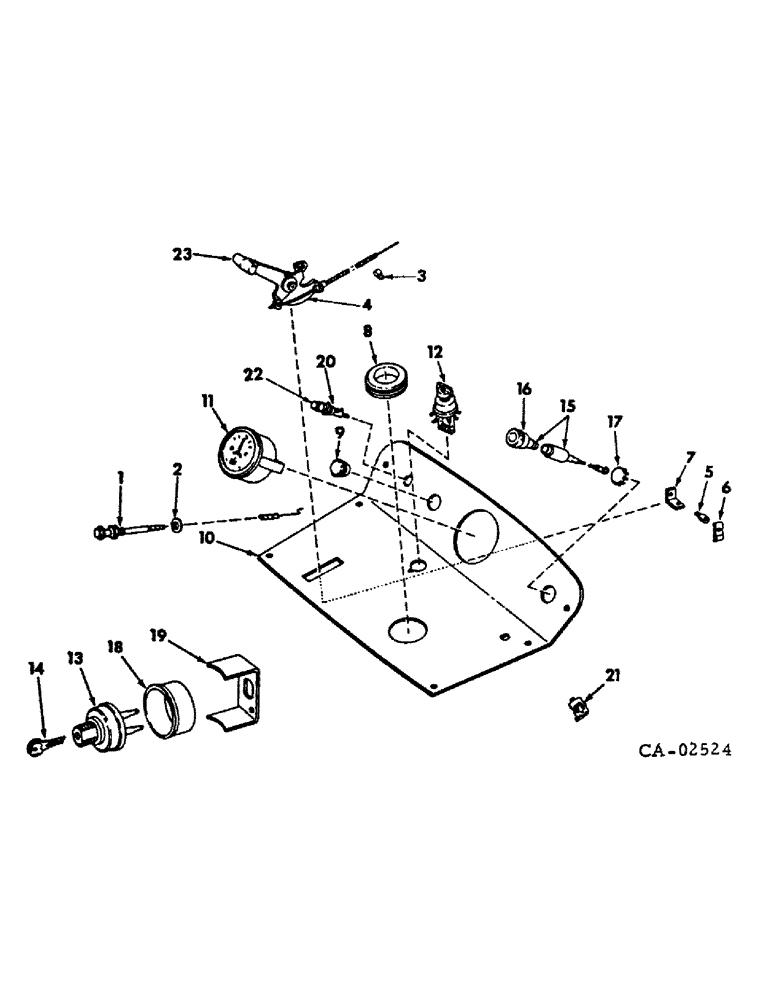

Запчасти Case IH 185 (11-02) - INSTRUMENTS, ENGINE CONTROLS AND INSTRUMENTS Instruments

1

529926R1

CABLE

ASSY, choke lever

1шт.

2

131022

WASHER

.406 x .812 x .051 crb, bezel choke

1шт.

3

61813D

CLIP

throttle cable

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

4

543920R3

LEVER

throttle cable, less knob

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

404853R1

PIN

governor control swivel

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 pln cot.

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp fil/hds mach

1шт.

120385

WASHER,3/16"

.250 x .562 x .036

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

6

32596D

FASTENER

CLAMP, throttle control

1шт.

132119

SCREW

10-32 x 5/8 C-Z cr-rec-f-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

406565R1

SUPPORT

BRACKET ASSY, throttle control

1шт.

8

376254R1

GROMMET

instrument panel

1шт.

9

404854R1

SOCKET

ASSY, tellite, for 27/32 in. panel mounting hole

1шт.

9

544311R1

SOCKET

ASSY, tellite, for 29/32 in. panel mounting hole

1шт.

10

549998R2

PANEL

ASSY, instrument

1шт.

23927R1

SCREW

1/4 x 3/4 CAD P/HDCR mach

6шт.

162050

SCREW, 14-10 x 1/2 CAD cr-rec

1шт.

539643R1

WASHER

instrument panel

1шт.

11

378424R91

GAUGE

INDICATOR ASSY, charge

1шт.

12

376851R92

SWITCH

ASSY, lighting

1шт.

13

60736C2

SWITCH

ASSY, battery ignition key

1шт.

365502R1

NUT

battery ignition switch

2шт.

375431R1

LOCK WASHER

battery ignition switch

1шт.

14

131313C1

KEY, IGNITION

switch

1шт.

15

393699R91

CIGARETTE, lighter parts accessory

1шт.

16

378781R91

PACKAGE

UNIT, pop out

1шт.

17

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 button, cigarette lighter opening hole

1шт.

18

402238R1

SOCKET

ignition switch

1шт.

19

402239R1

CHANNEL

RETAINER, ignition switch

1шт.

20

376852R91

HOUSING

ASSY, fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC15

1шт.

21

391076R1

CLIP

speed

1шт.

22

356445R92

KNOB, fuse holder

1шт.

23

530118R1

BUTTON

KNOB, throttle control cable lever

1шт.
