Запчасти Case IH 185 (06-01[1]) - COOLING, FAN BLADES AND BELTS Cooling

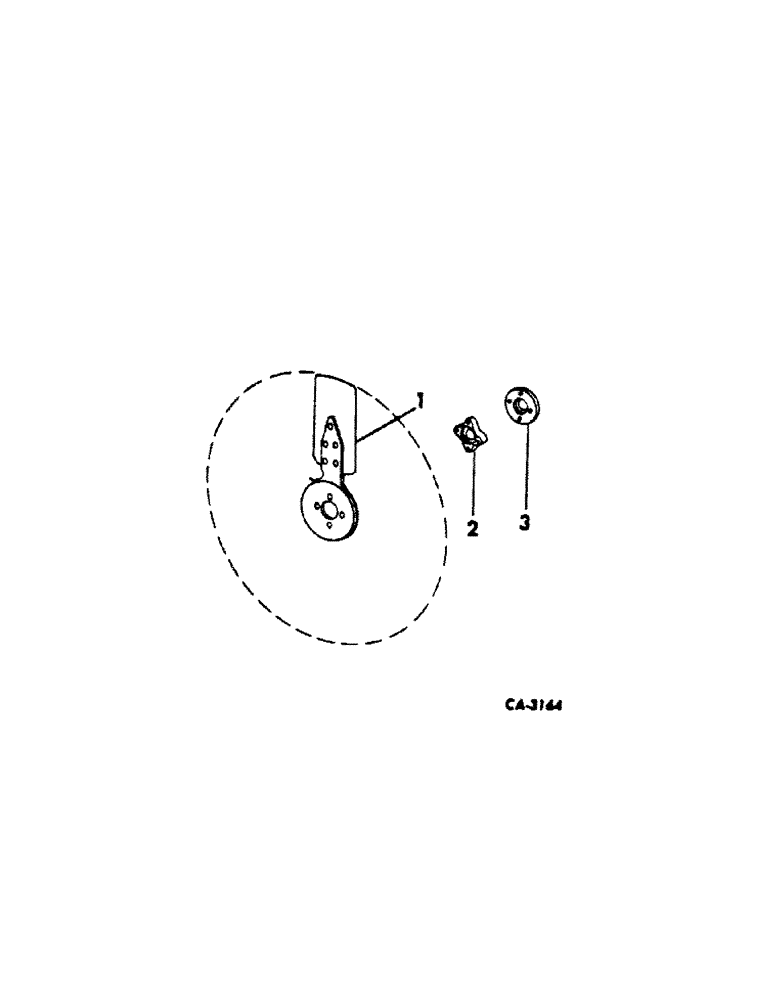

Схема запчастей Case IH 185 - (06-01[1]) - COOLING, FAN BLADES AND BELTS Cooling
3
2
1

Артикул

Название

Примечание

Количество

1

404841R1

FAN

ASSY, blade, cub 154 lo-boy tractor

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

106436C1

FAN ASSY, blade, cub 185 lo-boy & 184 tractors

1шт.

254954C92

PULLEY

fan

1шт.

181568

BOLT,Hex, 1/4" - 28 x 1", Gr 5

SCREW, 1/4-28 x 1 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

(Not used this application)

1шт.

3

(Not used this application)

1шт.

527621R1

V-BELT,0.38" W x 48.00" L

Fan 0.38" W x 48.00" L

1шт.

Выбрано товаров: 10
