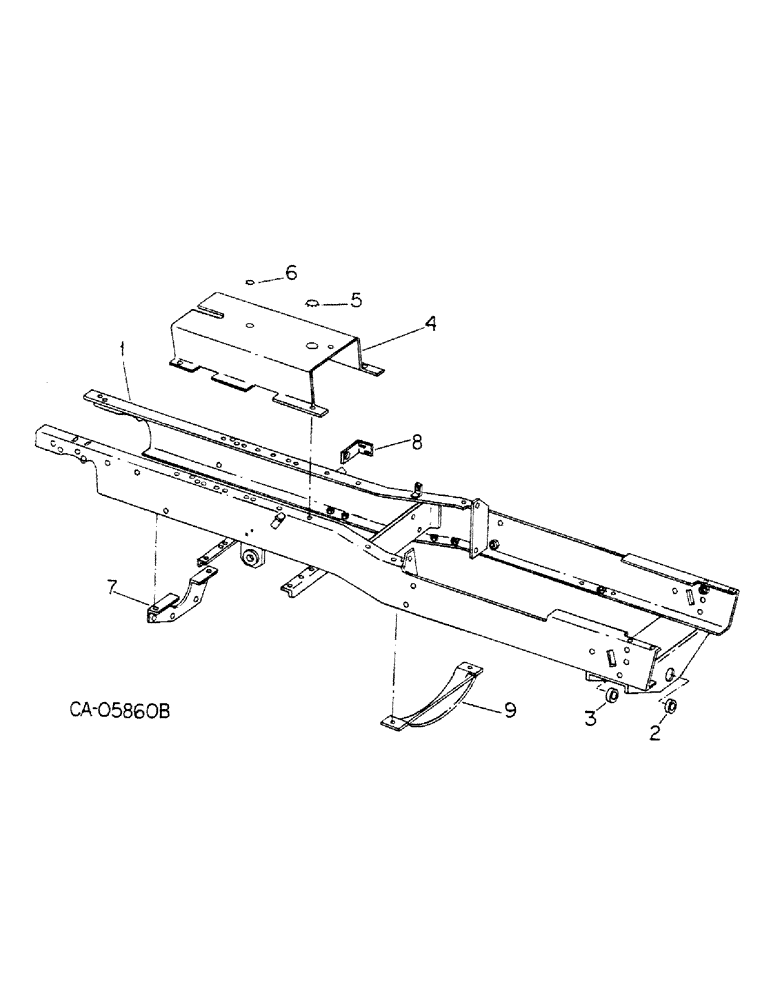

Запчасти Case IH 184 (09-03) - FRAME, MAIN FRAME AND SUPPORTS, 184 TRACTOR (12) - FRAME

1

106923C3

FRAME ASSY

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

2шт.

2

404618R1

HUB

front axle pivot pin front

1шт.

3

404619R1

HUB

front axle pivot pin rear

1шт.

4

404627R2

COVER

frame top

1шт.

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW, no. 12 x 1/2 h/hd tap

4шт.

5

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 button

1шт.

6

142126

DRIVEN SPROCKET

PLUG, 7/8 button

1шт.

7

106912C1

SUPPORT

transmission

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

117247C1

BRACKET, switch

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

404624R2

SHIELD ASSY, flywheel

1шт.

172427

SHIELD

1/4 x 1/2 h/hd tap

2шт.

126293C1

ANGLE, engine mtg, LH

1шт.

126294C1

ANGLE

engine mtg, RH

1шт.

404916R1

BOLT, front engine mtg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

2шт.

The brackets which show hanging down at the rear half of the frame, have .360" ID bolt holes throughout.

1шт.
