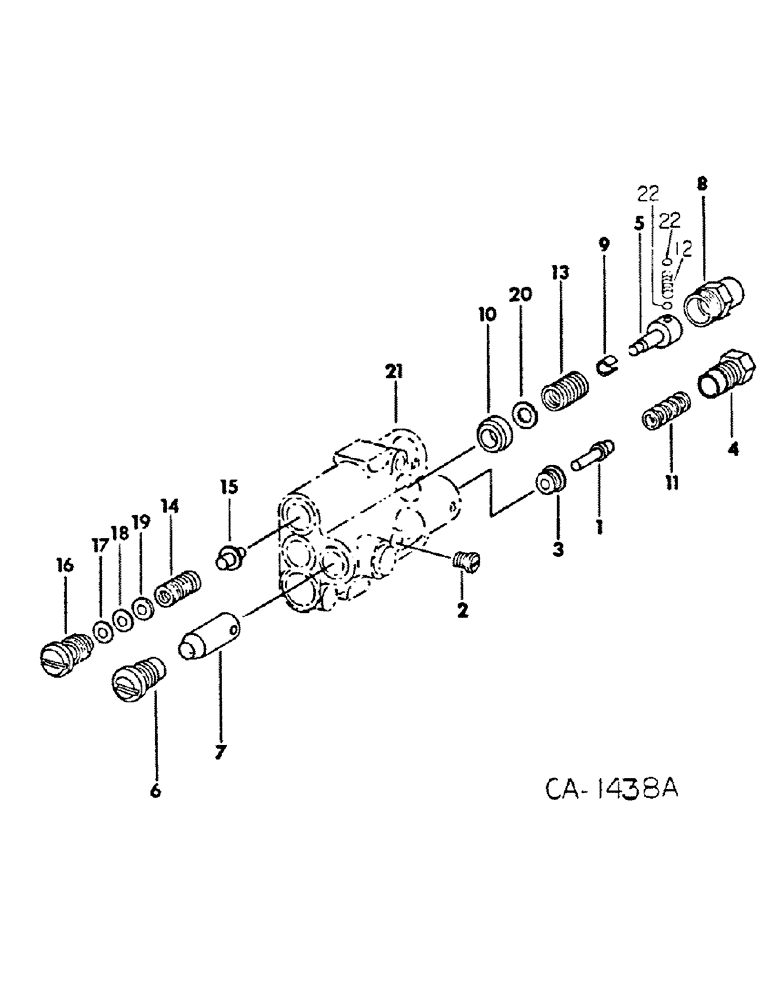

Запчасти Case IH 184 (10-13) - HYDRAULICS, CONTROL VALVE (07) - HYDRAULICS

546545R91

VALVE

ASSY, control, consists of the following

1шт.

1

588351R91

VALVE

POPPET

1шт.

2

546782R1

PLUG, slt

1шт.

3

546783R1

SEAT, washer

1шт.

4

546784R1

PLUG, adapter

1шт.

5

674498R1

SCREW, detent

1шт.

6

546785R1

PLUG, plunger

1шт.

7

546786R1

PLUNGER

1шт.

8

546787R1

CAP, detent

1шт.

9

546788R1

SPACER

1шт.

10

674775R1

BUSHING

detent

1шт.

11

674517R1

SPRING

lockout

1шт.

12

201737C1

SPRING

detent

1шт.

13

598883R1

SPRING, spool centering

1шт.

14

632843R1

SPRING

poppet

1шт.

15

674501R1

VALVE POPPET

POPPET, replaces 668377R91

1шт.

16

547183R1

PLUG

poppet

1шт.

17

674504R1

WASHER

.015

1шт.

18

394655R1

WASHER

.010

1шт.

19

673647R1

WASHER

.035

1шт.

20

202649C1

SPRING WASHER

.046

2шт.

20

824545C1

WASHER

.020

1шт.

21

BODY, not serviced separately, order valve assy, 546545R91

1шт.

22

16005R1

BALL

5/32 cr-stl

2шт.

546781R91

PACKAGE

o-ring and gasket, consists of (1) o-ring 3046105R1, (2) o-ring 252739R1, (1) o-ring 350429R1, (2) o-ring 252707R1, (1) o-ring 370920R1, (2) washer 66352C1

1шт.
