(10-10) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC LIFT OR THREE POINT HITCH ATTACHMENTS

Запчасти Case IH 184 (10-10) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC LIFT OR THREE POINT HITCH ATTACHMENTS (07) - HYDRAULICS

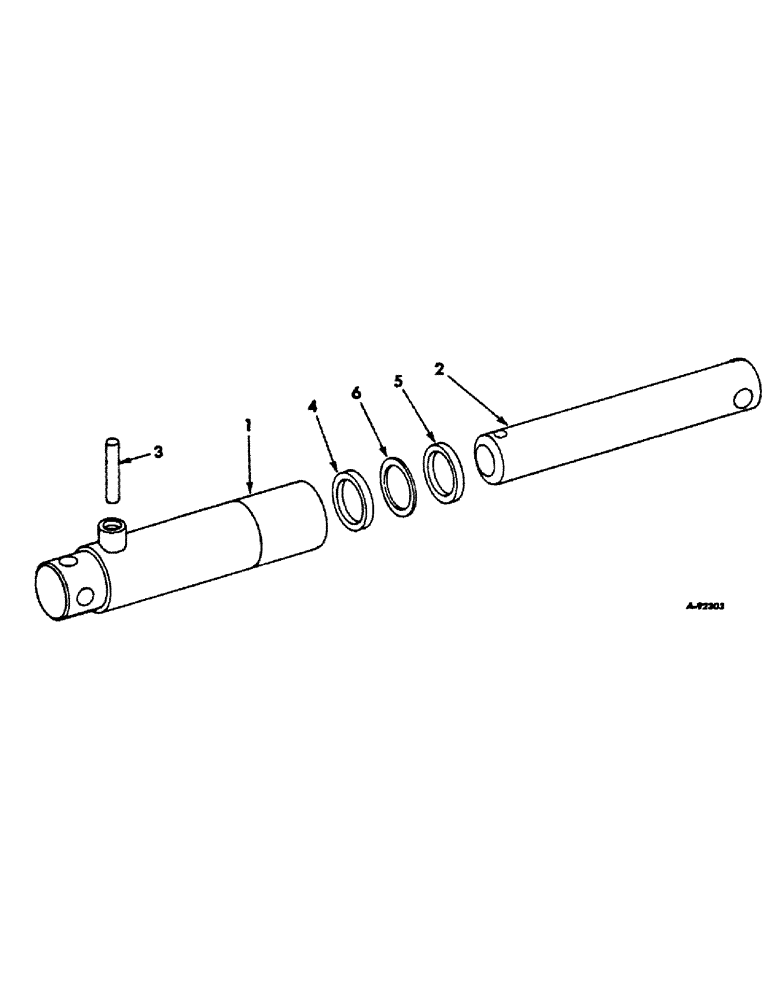

Схема запчастей Case IH 184 - (10-10) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC LIFT OR THREE POINT HITCH ATTACHMENTS (07) - HYDRAULICS
6
3
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

405794R92

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting

1шт.

1

405795R2

BODY ASSY, hyd cylinder

1шт.

2

405803R2

ROD

piston

1шт.

3

405801R2

PIN, stop

1шт.

4

403995R1

RING

quad

1шт.

5

389390R1

WIPER SEAL

WIPER, piston rod

1шт.

6

387362R2

BACK-UP RING

WASHER, piston rod bracket

1шт.
