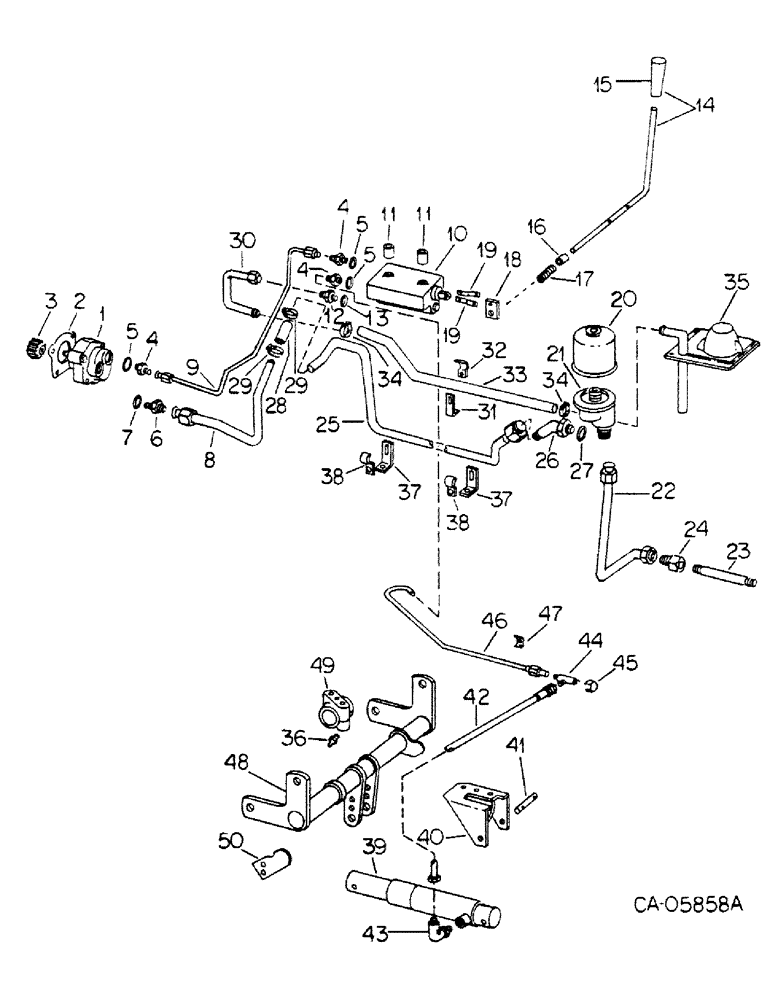

Запчасти Case IH 184 (10-08) - HYDRAULICS, HYDRAULIC LIFT, 184 TRACTOR (07) - HYDRAULICS

1

544017R91

PUMP

ASSY, hyd, Cessna, optional w/547135R91

1шт.

1

547135R91

PUMP

ASSY, hyd, Borg-Warner, optional w/544017R91, for list of components see hydraulic pump assy

1шт.

23683R1

SCREW,Hex Soc Hd, 5/16" - 18 x 2 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

351677R1

GASKET

pump

1шт.

3

352038R1

GEAR

pump drive, 10T

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

3шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

6

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd 37 deg flared tube short reducer

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

8

544018R1

TUBE ASSY, suction short

1шт.

9

126472C1

HYD TUBE

TUBE ASSY, pressure long

1шт.

10

546545R91

VALVE

ASSY, control

1шт.

11

546546R1

SPACER

2шт.

179808

BELT, TRANSMISSION

1/4 x 2-3/4 pln type 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

14

546547R91

HANDLE

ASSY

1шт.

15

391056R1

GRIP

handle

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

131440H

WASHER

.531 x .875 x .042 pln

1шт.

16

546549R1

SPACER

handle

1шт.

17

404880R1

SPRING

valve handle

1шт.

18

546550R1

LEVER

valve handle

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

53257V

AXLE PIN

PIN, 3/16 x .719 pln clevis

1шт.

23496R1

SCREW, 3/8 NF x 5-3/4 CAD H/SHD cap

1шт.

19

546551R1

BAR

hyd valve operating

2шт.

103493

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x .580 pln clevis

1шт.

23476R1

PIN, SPLIT (COTTER),5/64" x 1/2"

1шт.

20

404886R1

FILTER

ASSY, hyd oil-spin-on

1шт.

21

530875R2

BASE

hyd oil filter

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

530876R2

TUBE ASSY, hyd filter suction

1шт.

23

219334

NIPPLE, LUBE,Nipple, 1/2" NPT x 5 1/2"

NIPPLE, 1/2 x 6-1/2 long pipe

1шт.

24

530877R1

CONNECTOR, ELEC

CONNECTOR, hyd flared tube

1шт.

25

106400C2

HYD TUBE

TUBE ASSY, suction long

1шт.

26

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

1-1/16-12 37 deg flared tube 45 deg adj

1шт.

27

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

28

530879R1

HYDRAULIC HOSE,0.75" ID x 3.00", SAE 30R2 Type 3 Class 3

0.75" ID x 3.00", Suction Tube

1шт.

29

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

30

548552R1

TUBE ASSY, return

1шт.

31

531434R2

SUPPORT, tube clamp

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type

5шт.

32

547410R1

CLAMP, hyd hose

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type 5

1шт.

33

546553R1

HOSE, return

1шт.

34

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

35

530512R1

HOUSING

ASSY, gear shift lever

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, pipe

1шт.

364066R1

PIN

lever swivel stop

1шт.

36

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

37

404895R1

SUPPORT, tube clamp

3шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

3шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type 5

3шт.

38

547410R1

CLAMP, hyd hose

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

2шт.

16559R1

WASHER,1/4"

.26 x .625 x .036

2шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type 5

2шт.

39

404897R91

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting, optional w/405794R92

1шт.

39

405794R92

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting, optional w/404897R91, for list of components see hydraulic cylinder assy

1шт.

40

404898R1

BRACKET ASSY, cyl mtg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

41

132267C1

PIN

lift cylinder

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

42

529348R1

HOSE

hyd, serial no. 43800 & below

1шт.

42

392870R1

HOSE, hyd, serial no. 43801 & above

1шт.

43

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared adj 90 deg

1шт.

44

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 37 deg hyd flared tube three way

1шт.

45

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube

1шт.

46

117460C1

TUBE ASSY, hyd cyl 9.525 mm OD, 426.72, 177.29/16.8, 6.98 mm Length

1шт.

47

384855R1

CLAMP

hyd tubes

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type 5

1шт.

48

404904R2

ROCKSHAFT ASSY, serial no. 43800 & below

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3.250 pln hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

48

106415C1

ROCKSHAFT

ASSY, serial no. 43801 & above

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3.250 pln hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

49

404908R1

BEARING

ASSY, rockshaft

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

50

404911R1

BAR, rockshaft stop

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

404912R1

SCREW, stop adj

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.
