Запчасти Case IH 184 (08-01[1]) - ELECTRICAL, ALTERNATOR GENERATOR AND CONNECTIONS, 184 TRACTORS (06) - ELECTRICAL

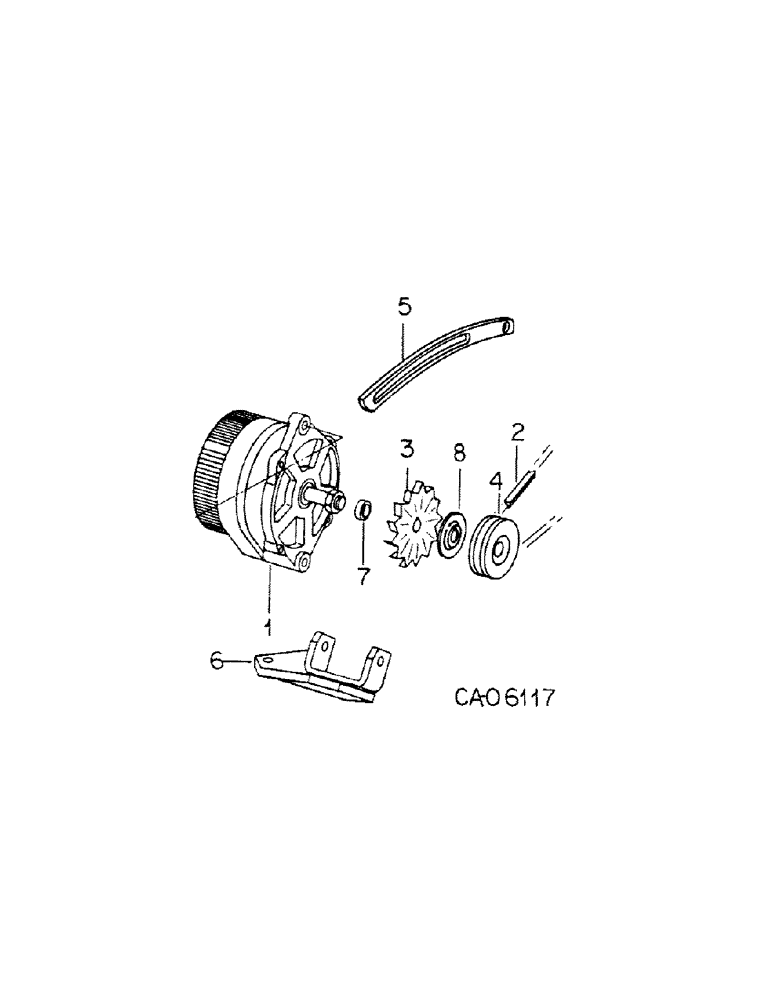

Схема запчастей Case IH 184 - (08-01[1]) - ELECTRICAL, ALTERNATOR GENERATOR AND CONNECTIONS, 184 TRACTORS (06) - ELECTRICAL
3
5
7
1
2
8
4
6

Артикул

Название

Примечание

Количество

1

1102920

GENERATOR

ALTERNATOR-GENERATOR ASSY, 42 ampere, furnish 1103171, for components see list of parts under details of alternator generator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return number

1шт.

1

A46932

ALTERNATOR

ALTERNATOR - 12 volt 63 ampere

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 PHC P/T lock type 5

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

225-14112

NUT,#12-24

NUT, no. 12 mach screw type 1

1шт.

1

1103171

GENERATOR

ALTERNATOR-GENERATOR, 42 ampere metric

1шт.

931714R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

BOLT, M10 x 80 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 PHC P/T class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

BOLT, M8 x 30 PHC class 10.9

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm PHC

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 pln class 8.8

1шт.

2

527621R1

V-BELT,0.38" W x 48.00" L

Alternator generator

1шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

800365

SPARE PART PULLEY, alternator generator

1шт.

5

532418R1

BRACE

BRACE, alternator generator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

95-11034

WASHER,1/4"

WASHER, .344 x .688 x .051 pln

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 pln type 5

1шт.

6

131229C1

SPARE PART SUPPORT, alternator generator

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

534408R1

SPARE PART SPACER

1шт.

8

368594R1

SPARE PART RETAINER, alternator-generator fan

1шт.

Выбрано товаров: 31
