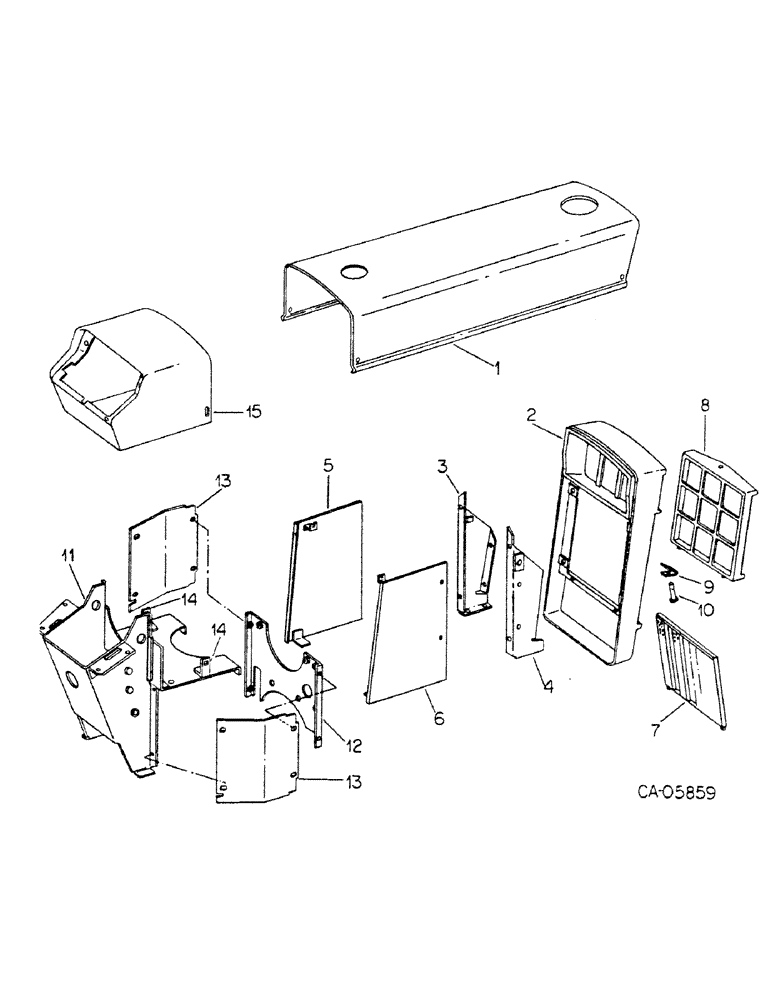

Запчасти Case IH 184 (13-03) - SUPERSTRUCTURE, HOOD, PANEL AND SUPPORT, 184 TRACTOR (05) - SUPERSTRUCTURE

1

132205C1

HOOD

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 bevel washer

4шт.

2

132247C1

HOUSING

grille

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 (or as required)

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

132255C2

SUPPORT ASSY, grille housing & radiator LH

1шт.

NLS

NO LONGER SERVICED

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

4

132256C2

SUPPORT ASSY, grille housing & radiator RH

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

5

132271C1

PANEL ASSY, grille side LH

1шт.

161892

SCREW, 10-12 x 3/8 cr-rec-pan-hd tap

1шт.

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, no. 10 x 1/2 H/WHD tap

1шт.

26976R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW, 1/4 x 3/8 H/WHD tap

2шт.

6

132272C1

PANEL ASSY, grille side RH

1шт.

161892

SCREW, 10-12 x 3/8 cr-rec-pan-hd tap.

1шт.

593749

SCREW, 10-24 x 1/2 CDP hex. washer hd tap

1шт.

26976R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW, 1/4 x 3/8 H/WHD tap

2шт.

7

132263C1

SCREEN

ASSY, grille

1шт.

8

132248C1

GRILLE

GRILL, insert

1шт.

9

132257C1

SPRING

latch

1шт.

10

132258C1

PIN

latch

1шт.

19531R1

PIN

1/16 x 5/8 pln stl-spr

1шт.

11

546310R92

PEDESTAL ASSY

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

12

404827R2

SECTION ASSY, pedestal front sheet

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

2шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

BOLT, 7/16 x 7/8 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

404830R2

SUPPORT

side, panel

2шт.

395800R1

BOLT,Hex Wshr Hd, 1/4" - 20 x 3/8"

SCREW, 1/4-20 x 3/8 bevel, washer, hd cap

8шт.

14

530145R11

BRACKET ASSY, hood hold down

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

15

404585R2

COWL

instrument panel

1шт.

404766R1

NUT

RETAINER, 1/4-20 nut

2шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 int tooth lock

2шт.
