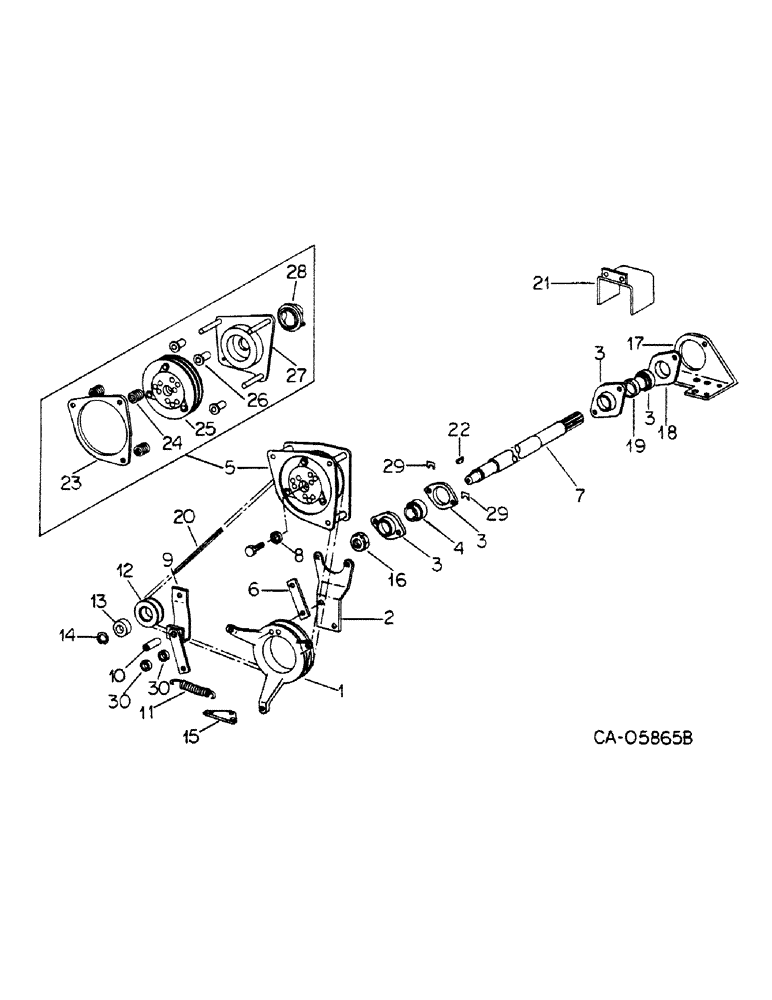

Запчасти Case IH 184 (07-14) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, 184 TRACTOR (04) - Drive Train

1

135345C3

PULLEY

IPTO drive

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

3шт.

2

107093C1

SUPPORT

clutch plate

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

581469R1

FLANGE,Bearing

brg

4шт.

4

72830C91

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

BEARING, PTO shaft frt

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

5

126209C91

CLUTCH

ASSY, IPTO

1шт.

6

107094C1

BAR

stabilizer

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

7

107133C1

SHAFT

IPTO

1шт.

8

923180C1

WASHER

hardened

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" type 5

1шт.

9

126050C2

ARM

ASSY, idler pivot

1шт.

10

126053C2

BUSHING

idler pivot

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

126054C3

SPRING

idler

1шт.

12

107092C3

PULLEY

idler

1шт.

13

107095C91

BALL BEARING,13mm ID x 40mm OD x 18mm W

idler pulley

1шт.

14

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

1шт.

309872C1

SPACER

.55 x .84 x .333

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

126055C1

SUPPORT

idler spring, bracket

1шт.

16

126207C1

NUT

1-1/8-12 LH hex. thin

1шт.

17

404939R1

SUPPORT, IPTO shaft brg

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

18

528343R92

BALL BEARING,1.1255" ID x 62 mm OD x 0.9575"

PTO shaft rear

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

19

557115R11

COLLAR

COLLAR W/SET SCREW, locking

1шт.

20

126292C1

SET OF BELTS,200.00" L

Matched, PTO drive 200.00" L

1шт.

21

404940R1

SUPPORT

GUARD, PTO shaft

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

22

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

23

73939C1

RETAINER

brake plate

1шт.

24

61617C1

VALVE SPRING

KIT, spring, consists of four springs

1шт.

25

73938C1

ROTOR

& ARMATURE ASSY

1шт.

26

73940C1

SPACER

KIT, spacer, consists of three spacers

1шт.

27

73921C1

MAGNET

field assy

1шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 znd prevailing torque hex. lock

3шт.

28

73942C1

SPRING

ASSY

1шт.

29

139992C1

WASHER

shim, 1.650 mm

1шт.

29

140002C1

WASHER

shim, .750 mm

1шт.

30

140066C1

COLLAR

idler adjustment

2шт.

193222

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW, no. 8 x 1/4 C/PT znp HDL/S set

2шт.
