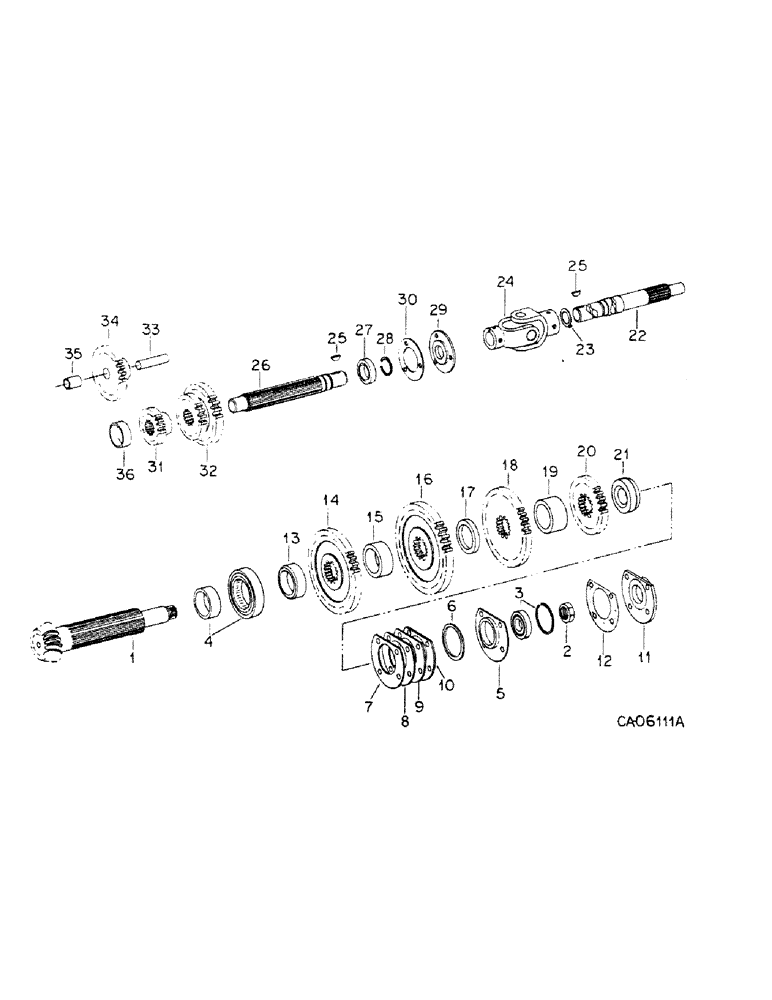

Запчасти Case IH 184 (07-09) - DRIVE TRAIN, TRANSMISSION, 184 TRACTOR (04) - Drive Train

1

351531R1

COUNTERSHAFT, bevel pinion, 10T

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

2

70119D

NUT

countershaft

1шт.

3

ST668

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, countershaft

1шт.

4

350857R91

BEARING, ROLLER, CYL,30mm ID x 62.99mm OD x 16mm W

countershaft rear

1шт.

5

385688R1

RETAINER

bearing

1шт.

6

350840R1

RING

retainer seal

1шт.

7

350841R2

SHIM

bearing retainer, extra light (or as required)

2шт.

8

350842R2

SHIM

bearing retainer, light (or as required)

2шт.

9

350843R2

SHIM

bearing retainer, medium (or as required)

1шт.

10

350844R2

SHIM

bearing retainer, heavy (or as required)

1шт.

11

350845R1

CAP

bearing retainer

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

4шт.

12

350846R1

GASKET

bearing retainer cap

1шт.

13

351532R1

SPACER

rev speed gear & countershaft bearing

1шт.

14

350848R1

PINION

GEAR, reverse speed, 35T

1шт.

15

351532R1

SPACER

1st & reverse speed gear

1шт.

16

350850R1

GEAR

1st speed

1шт.

17

351533R1

WASHER

SPACER, 1st & 2nd speed gear

1шт.

18

364519R1

GEAR

2nd speed, 36T

1шт.

19

350853R1

SPACER

2nd & 3rd speed gear

1шт.

20

350854R1

PINION

GEAR, 3rd speed, 26T

1шт.

21

385689R2

SPACER

3rd speed gear & bearing

1шт.

22

117242C1

SHAFT

main clutch, tractor w/o creeper drive

1шт.

22

126206C1

SHAFT

main clutch, tractors w/creeper drive

1шт.

23

675683R1

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

1шт.

24

117297C91

JOINT

ASSY, universal

1шт.

25

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C/PT znp HDL/S set

4шт.

26

117289C1

SHAFT

main transmission, tractor w/o creeper drive

1шт.

26

404667R1

SHAFT

main transmission, tractor w/creeper drive

1шт.

27

ST542

BALL BEARING,25mm ID x 47mm OD x 12mm W

BEARING, shaft front

1шт.

28

351539R1

RING

bearing lock

1шт.

29

528810R91

OIL SEAL

shaft oil

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

30

350866R1

GASKET

shaft oil seal, tractor w/o creeper drive

1шт.

31

350867R1

PINION

GEAR, 1st and reverse sliding, 13T

1шт.

32

364520R1

GEAR

2nd and 3rd sliding, 16T & 26T

1шт.

33

350869R1

PIN

SHAFT, reverse idler

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

350870R11

PINION

GEAR ASSY, reverse idler

1шт.

35

350871R1

BUSHING

gear

1шт.

36

357931R91

NEEDLE BEARING

spline shaft rear, part of transmission case assy

1шт.
