(15-02[2]) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS, OUTSIDE MOUNTED ONE PIECE

Запчасти Case IH 184 (15-02[2]) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS, OUTSIDE MOUNTED ONE PIECE Wheels & Traction

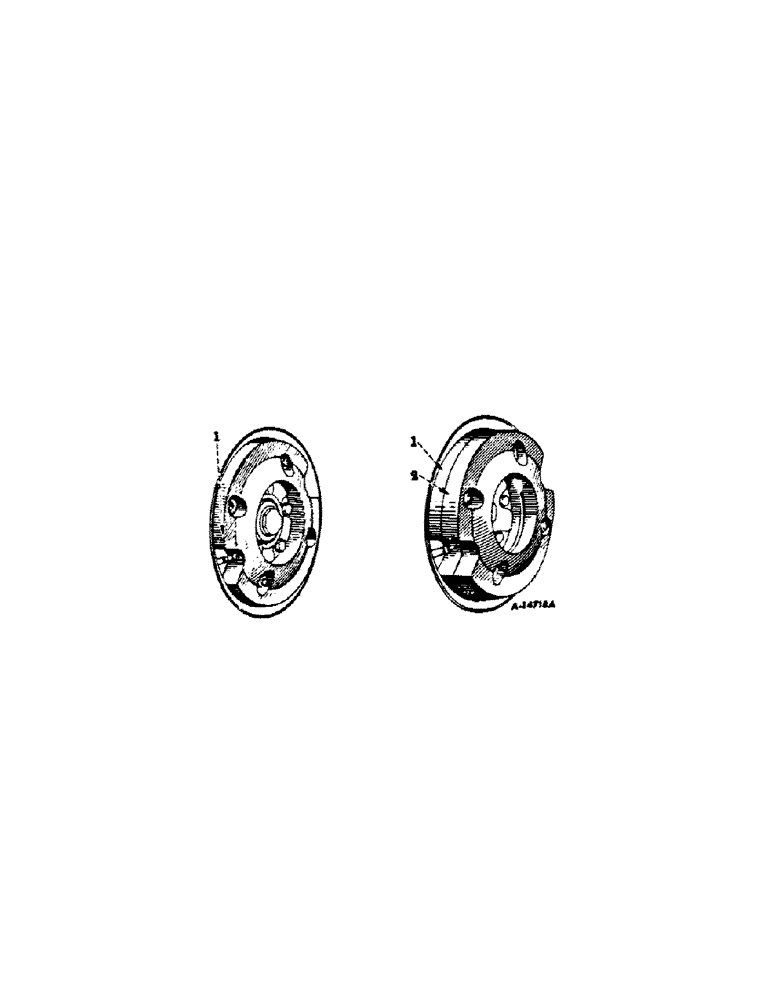

Схема запчастей Case IH 184 - (15-02[2]) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS, OUTSIDE MOUNTED ONE PIECE Wheels & Traction
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

351371R1

WEIGHT, front wheel, 26 lbs, first position

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

351371R1

WEIGHT, front wheel, 26 lbs, second position

2шт.

22310R1

BOLT, 1/2-13 x 3-3/8 znd sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 8
