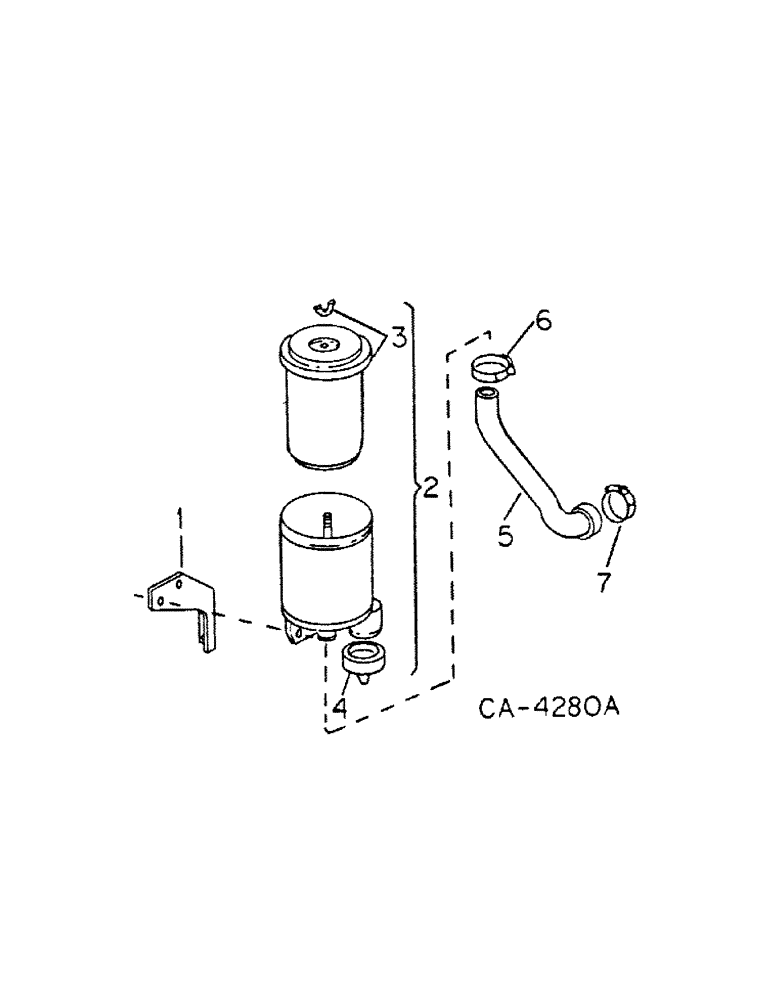

Запчасти Case IH 184 (12-21) - POWER, C-60 ENGINE, AIR CLEANER AND CONNECTIONS, 184 TRACTORS AND CUB 185 LO-BOY TRACTORS Power

1

404636R2

BRACKET ASSY, air cleaner

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

545828R91

CLEANER

ASSY, 5-1/4 in. diameter dry type air, composed of ref nos 3 and 4

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

547159R1

ELEMENT

W/WING NUT, air cleaner

1шт.

4

544977R1

DUST VALVE

VALVE, rubber unloader

1шт.

5

106411C1

INTAKE AIR HOSE,40.40 mm ID x 247.60 mm

HOSE, air cleaner

1шт.

6

35698D

CLAMP

air cleaner hose, air cleaner end

1шт.

7

39135H

CLAMP

air cleaner hose, carburetor end

1шт.
