Запчасти Case IH 184 (11-03) - INSTRUMENTS, INSTRUMENT PANEL, 184 TRACTOR Instruments

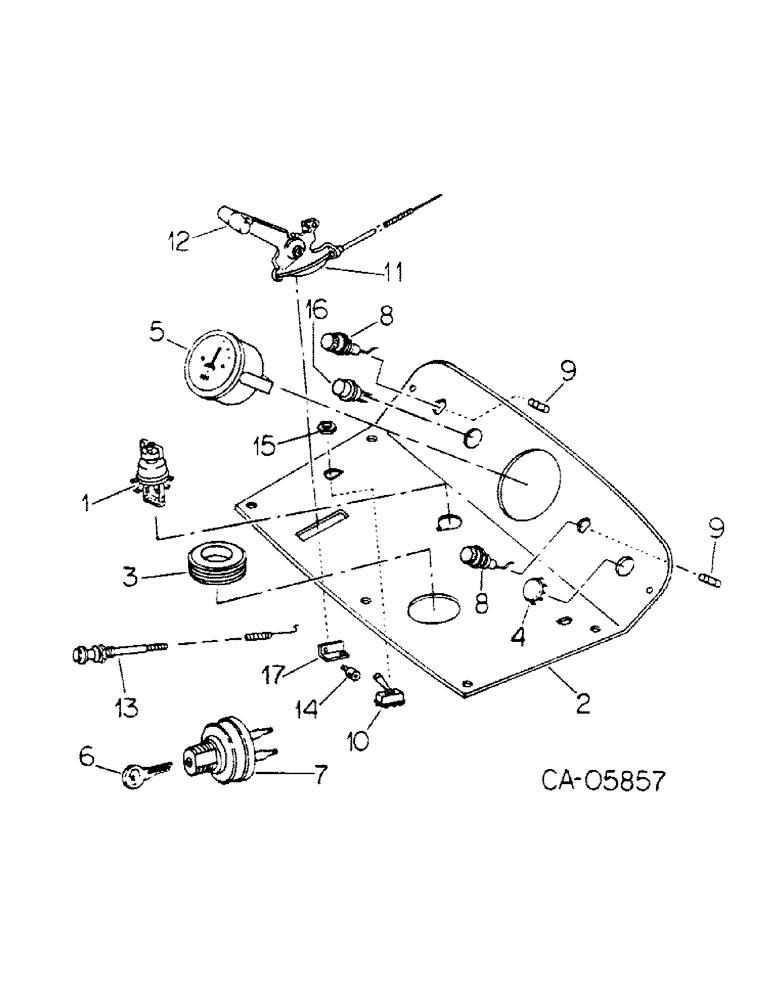

Схема запчастей Case IH 184 - (11-03) - INSTRUMENTS, INSTRUMENT PANEL, 184 TRACTOR Instruments
1
17
2
3
14
9
16
13
4
8
10
9
7
12
8
5
11
15
6

Артикул

Название

Примечание

Количество

1

376851R92

SWITCH

lighting

1шт.

2

132259C1

PANEL ASSY, instrument

1шт.

23927R1

SCREW

1/4 x 3/4 CAD P/HDCR mach

6шт.

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

1шт.

3

539643R1

WASHER

instrument panel

1шт.

4

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 button cigar lighter opening

1шт.

5

378424R91

GAUGE

INDICATOR CHARGE, tractor w/motor-generator

1шт.

5

536229R1

INDICATOR

CHARGE, tractor w/alternator-generator

1шт.

6

131313C1

KEY, IGNITION

switch

1шт.

7

60736C2

SWITCH

battery ignition key start

1шт.

375431R1

LOCK WASHER

19/32 x 1 x 11 ga

1шт.

365502R1

NUT

switch mtg

2шт.

8

376852R91

HOUSING

ASSY, fuse

2шт.

9

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC15

2шт.

10

107372C1

SWITCH

IPTO

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

11

126262C1

LEVER

throttle cable

1шт.

12

530118R1

BUTTON

KNOB, throttle control

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, no. 10 x 1/2 znp R/HDS mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

529926R1

CABLE

choke lever

1шт.

529927R1

BRACKET, choke control

1шт.

14

404853R1

PIN

governor control swivel

1шт.

120385

WASHER,3/16"

.250 x .562 x .036

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot.

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp pln hds mach

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

57603C1

NUT

switch

1шт.

16

107595C91

LAMP

LIGHT ASSY, indicator, composed of (1) lens 71652C1, (1) bulb 324929R1

1шт.

17

126263C1

BRACKET

throttle control

1шт.

Выбрано товаров: 32
