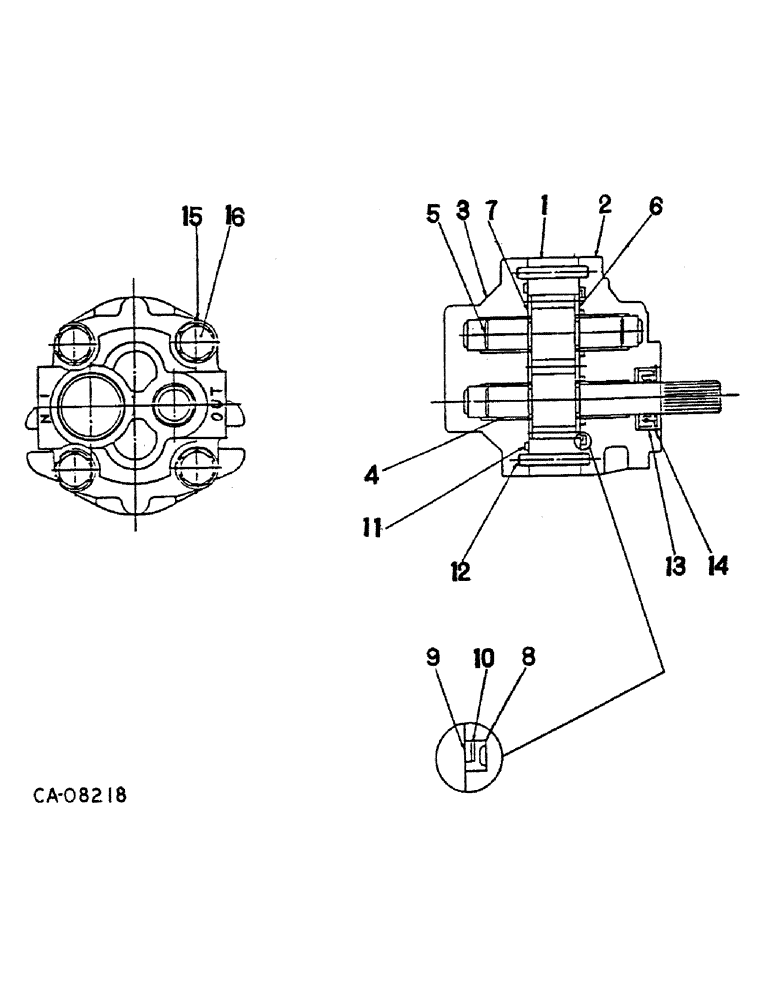

Запчасти Case IH 274 (10-12) - HYDRAULICS, HYDRAULIC PUMP, TRACTORS WITH SERIAL NO. 008900 AND ABOVE (07) - HYDRAULICS

1437109R91

PUMP

ASSY, hydraulic

1шт.

1

PLATE, gear (NSS)

1шт.

2

FLANGE, mounting (NSS)

1шт.

3

COVER (NSS)

1шт.

4

GEAR, drive (NSS)

1шт.

5

GEAR, driven (NSS)

1шт.

6

PLATE, side A (NSS)

1шт.

7

PLATE, side B (NSS)

1шт.

8

SEAL, balance, (NSS)

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

9

GASKET A, (NSS)

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

10

GASKET B, (NSS)

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

11

O-RING, (NSS)

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

12

1437648R1

PIN

dowel

2шт.

13

SEAL, oil

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

14

RING, snap

1шт.

Part of Hydraulic Pump Kit, P/N 1438787R91

1шт.

15

1437654R1

WASHER

4шт.

16

1437652R1

BOLT

4шт.

1438787R91

PACKAGE

KIT, hydraulic pump service, consists of ref. nos. 8 - 11, 13 & 14

1шт.
