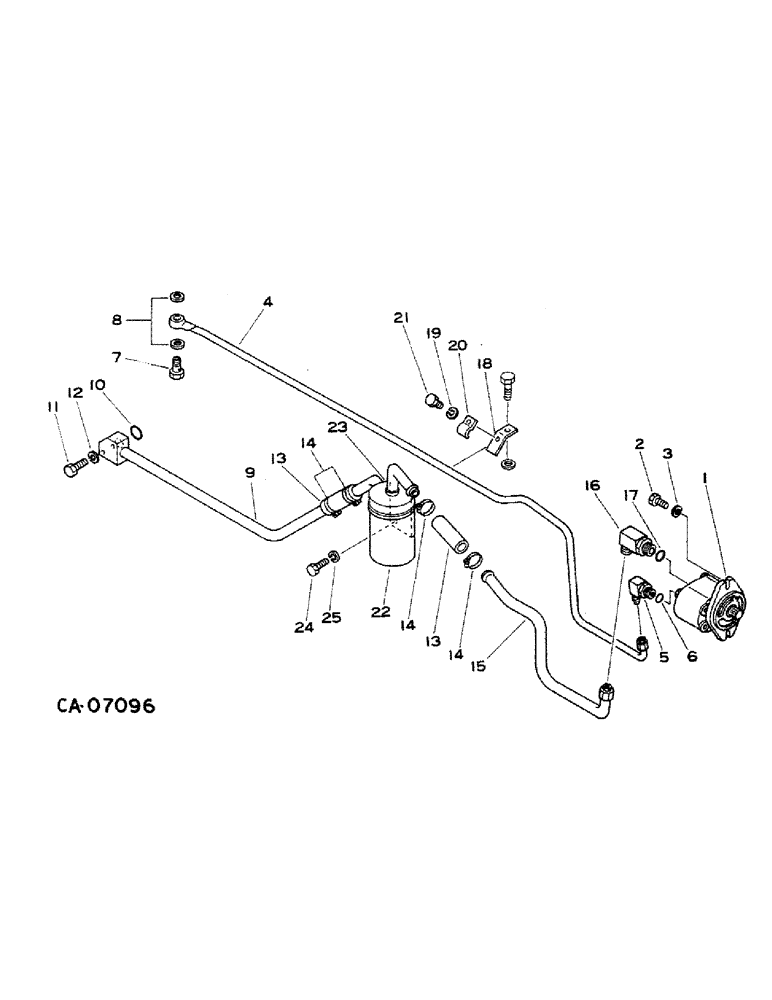

Запчасти Case IH 274 (10-06) - HYDRAULICS, HYDRAULIC PIPING (07) - HYDRAULICS

1

1061551C93

PUMP

ASSY, hydraulic, see detail list, tractor w/serial no. 008899 and below

1шт.

1

1437109R91

PUMP

ASSY, hydraulic, see detail list, tractors w/serial no. 008900 and above

1шт.

2

1060581C1

BOLT, M10 x 30

2шт.

3

30184R1

WASHER,M10 x 24.5 x 3, HT

M10 x M24 x M3

2шт.

4

1059121C1

PIPE

high pressure

1шт.

5

1061207C1

ELBOW

high pressure, used w/pump assy, 1061551C93

1шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D, high pressure, used w/pump assy 1437109R91

1шт.

6

1019543C1

OIL SEAL

O-RING, used w/pump assy, 1061551C93

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used w/pump assy, 1437109R91

1шт.

7

974112C1

FITTING,Hex, 30mm, Drilled

BOLT, joint

1шт.

8

973254C1

GASKET

2шт.

9

1061036C1

BLOCK

PIPE, low pressure rear

1шт.

10

974111C1

O-RING

1шт.

11

1012978C1

BOLT

M8 x 50 mm

2шт.

12

897948C1

WASHER

M8 lock

2шт.

13

1014725C1

HOSE,19.00 mm ID x 100.00 mm

2шт.

14

886987H1

CLAMP

027-040

4шт.

15

1059123C1

PIPE

low pressure front

1шт.

16

1061206C1

ELBOW, low pressure, used w/pump assy, 1061551C93

1шт.

16

1437071R1

ELBOW

low pressure, used w/pump assy, 1437109R91

1шт.

17

1004456C1

O-RING,23.7mm ID x 3.5mm Width

O-RING

1шт.

18

(Not used this application)

1шт.

19

897948C1

WASHER

M8 lock

1шт.

20

773940R1

CLAMP

HOLDER, oil pipe

1шт.

21

1012976C1

BOLT

M8 x 12 mm

1шт.

22

1004366C1

FILTER ASSY

oil

1шт.

23

1059126C1

CAP

oil filter

1шт.

24

1438464R1

BOLT (SPREADER)

BOLT, M8 x 25 mm

2шт.

25

(Not used this application)

1шт.
