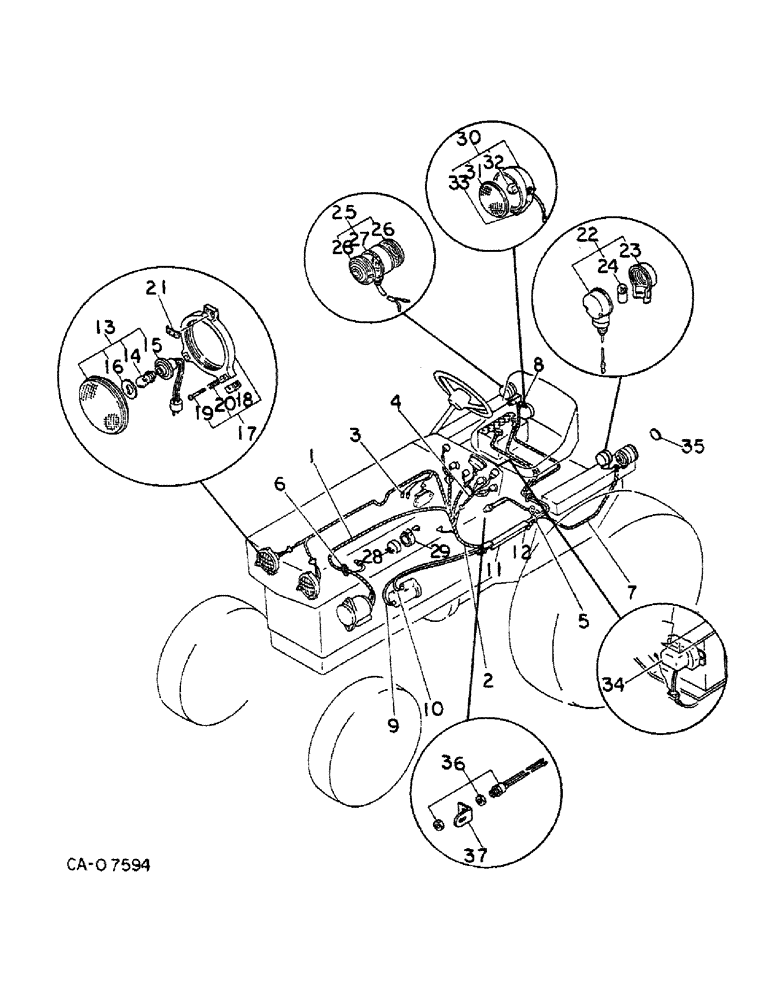

Запчасти Case IH 274 (08-02) - ELECTRICAL, ELECTRICAL SYSTEM (06) - ELECTRICAL

1

1431616R1

HARNESS

main front

1шт.

2

1431617R1

HARNESS

main middle

1шт.

3

1002963C1

DIODE

2шт.

4

1431622R1

HARNESS

main rear

1шт.

5

976195C1

STRAP

nylon

3шт.

6

976196C1

STRIP

STRAP, nylon

2шт.

7

1430519R2

HARNESS

fender LH

1шт.

8

1002771C2

HARNESS

fender RH

1шт.

9

1061465C2

CABLE

, Serial Range: battery-starter

1шт.

10

1430787R1

CABLE

, Serial Range: battery-earth

1шт.

11

1430655R2

COVER

harness

1шт.

12

1430514R1

BRACKET

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

1шт.

13

984543C92

LIGHT

head

2шт.

14

1004007C1

BULB

45W/45W

2шт.

15

1060638C1

SOCKET

ASSY.

2шт.

16

1060639C1

GASKET

2шт.

17

974234C1

HOUSING

ASSY, order component parts (NSS) (Replaces DASHPART)

2шт.

18

1060640C1

PLATE

adjusting

4шт.

19

973968C1

BOLT

M4 x 40

4шт.

20

973969C1

SPRING

4шт.

21

974205C1

PLATE

set

2шт.

1014936C1

SCREW

M4 x 20 r/hdcr

4шт.

977788C1

WASHER

M4 lock

4шт.

22

1004042C91

LIGHT

TAIL LIGHT ASSY

1шт.

1003996C1

NUT, M8

1шт.

1003997C1

WASHER, M8 lock

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

23

1003993C11

LIGHT

LENS, tail light

1шт.

24

1003994C1

LAMP

BULB

1шт.

25

1014560C91

LIGHT

ASSY, flasher, order flasher light, 1433324R1

2шт.

25

1433324R1

FLASHER UNIT

LIGHT ASSY, flasher, replaces 1014560C91

1шт.

26

1014561C1

LENS

flasher light, used only w/light, 1014560C91

4шт.

27

1014562C1

BULB

light, used only w/light 1014560C91

2шт.

28

974446C92

INDICATOR LIGHT

UNIT, flasher

1шт.

29

974448C1

SUPPORT

unit

1шт.

30

973043C94

STRIPPER PACKAGE

LIGHT ASSY, plow

1шт.

31

974263C2

LENS

plow light

1шт.

32

974264C2

LAMP BASE

BULB, 30W

1шт.

33

974265C2

BRACKET

STAY

1шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20 hex-hd

1шт.

897948C1

WASHER

M8 lock

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

34

1061462C1

REGULATOR

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

2шт.

35

983876C1

REFLECTOR

REGULATOR

2шт.

978170C1

NUT

M5

2шт.

978125C1

WASHER

M5 lock

2шт.

36

1014727C92

SWITCH

ASSY, safety starting

1шт.

1060657C1

NUT

M16

2шт.

37

1060904C2

BRACKET

switch

1шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

897948C1

WASHER

M8 lock

1шт.
