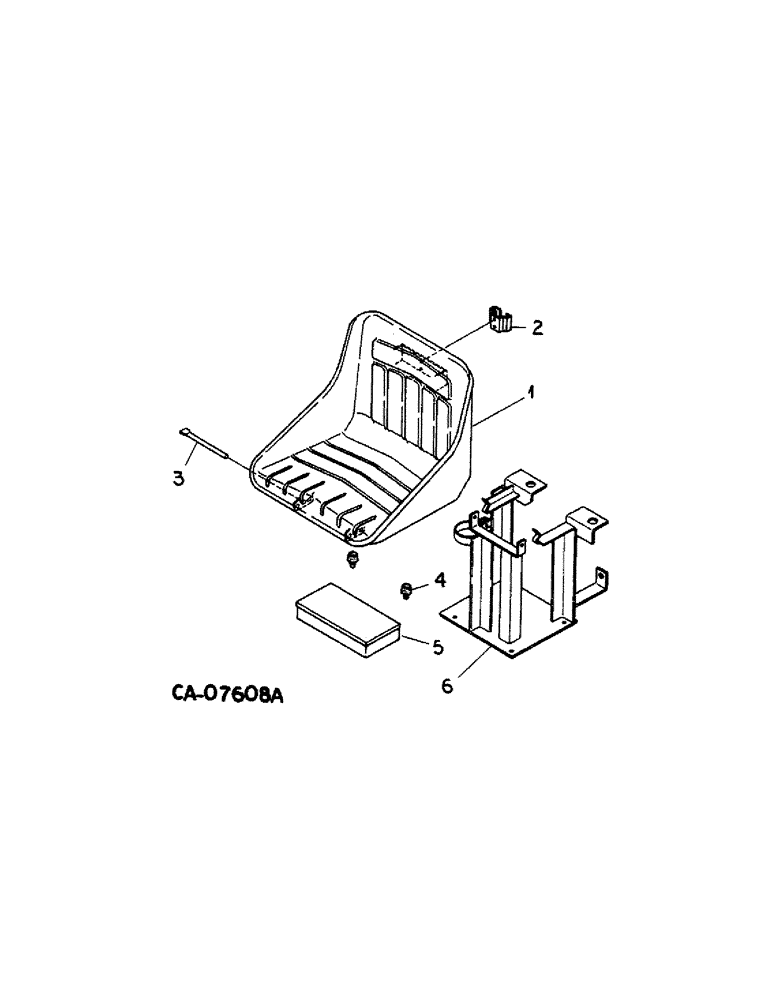

Запчасти Case IH 274 (13-04[1]) - SUPERSTRUCTURE, SEAT AND TOOL BOX (05) - SUPERSTRUCTURE

1

1430633R1

SEAT

ASSY

1шт.

2

398976R1

BRACKET

SOCKET, SMV

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

25520R1

NUT,5/16"-18, G8

5/16 PHC type 8

2шт.

3

1061563C1

PIN

10 x 186

1шт.

1004155C1

PIN

Q.A.

1шт.

4

1060820C1

SHOCK ABSORBER

CUSHION

2шт.

5

1002536C3

BOX

tool

1шт.

6

1434087R1

SUPPORT ASSY.

SUPPORT, seat

1шт.

1012959C1

BOLT

M12 x 25

3шт.
