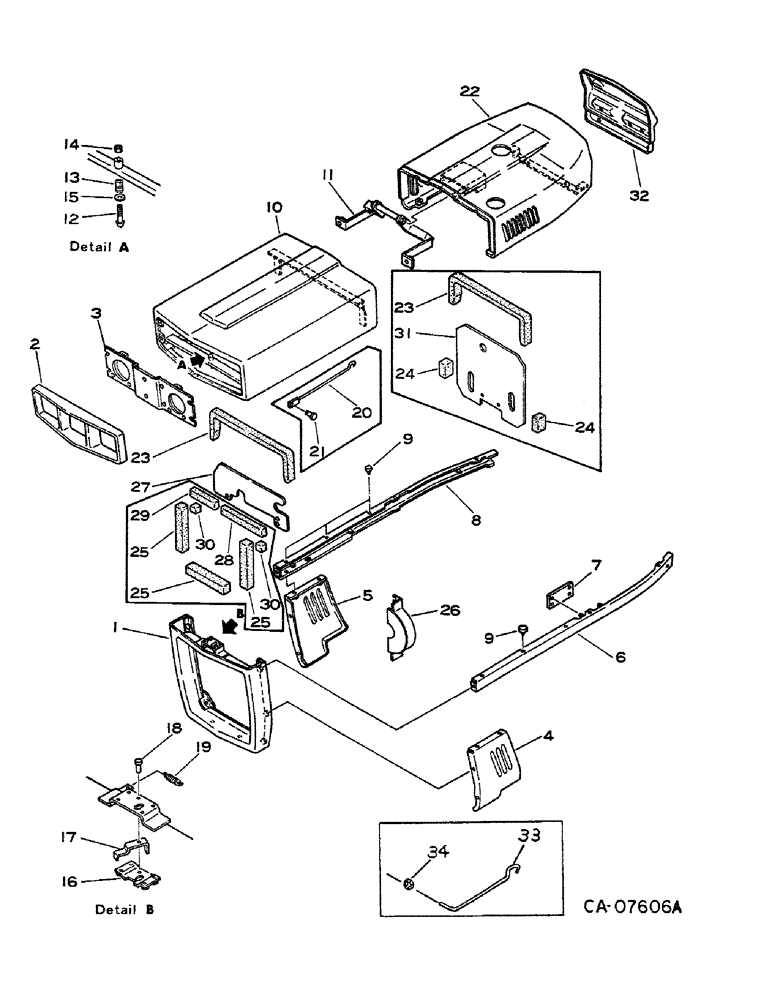

Запчасти Case IH 274 (13-02) - SUPERSTRUCTURE, GRILLE AND HOOD (05) - SUPERSTRUCTURE

1

1432352R1

SUPPORT

GRILLE, support

1шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20

2шт.

897948C1

WASHER

M8 lock

2шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

2

974408C2

HOUSING

head light

1шт.

3

1059143C1

COVER

replaces 974735C1

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

8шт.

4

1061948C2

SKIRT

LH, painted white

1шт.

4

1436547R1

SKIRT

LH, painted red

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

2шт.

5

1061952C2

SKIRT

RH, painted white

1шт.

5

1436548R1

SKIRT

RH, painted red

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

2шт.

6

1061943C6

BRACKET

STAY, side LH, painted white

1шт.

6

1436549R1

BRACE

STAY, side LH, painted red

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

2шт.

7

1064641C1

PLATE

heat protector

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

Tractors w/S/N 008778 and below #10-24

4шт.

973325C1

WASHER, M6 x M20 x M1.6, tractors w/serial no. 008778 and below

4шт.

8

1061934C5

BRACE

STAY, side RH, painted white

1шт.

8

1436550R1

BRACE

STAY, side RH, painted red

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

5шт.

9

974512C2

CUSHION ASSY.

CUSHION, hood

4шт.

10

1064575C2

HOOD

front

1шт.

11

1061881C3

HINGE

1шт.

980658C1

BOLT

M6 x 16

2шт.

978084C1

WASHER

M6 lock

2шт.

980021C1

WASHER

M6 x M14 x M0.8

2шт.

1061889C2

COLLAR

2шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20, for hinge mount

2шт.

897948C1

WASHER

M8 lock

2шт.

12

1061925C2

ROD

hood lock

1шт.

13

1061927C1

SPRING

hood lock

1шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

15

1062391C1

WASHER

M10 x M35 x M3.2

1шт.

16

1059271C1

PLATE

hood lock

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

4шт.

17

1432357R1

PLATE

hood lock

1шт.

18

1062429C1

PIN

6 x 16 roll

1шт.

PIN, 1.6 x 12 cot, purchase locally

1шт.

19

528136R1

SPRING

return

1шт.

20

1064600C2

ROD, hood support, order rod, 1434427R1 and nut, 1434176R1 for tractors w/serial no. 008413 and below

1шт.

21

1062010C1

PIN

6 x 14, serial no. 008413 and below

1шт.

PIN, 1.6 x 12 cot, purchase locally

1шт.

978085C1

WASHER

M6 x M11.5 x M0.8

1шт.

22

1430635R1

HOOD

rear

1шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20

2шт.

897948C1

WASHER

M8 lock

2шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

23

CUSHION, purchase locally

1шт.

24

CUSHION, purchase locally, serial no. 008731 and below

2шт.

25

CUSHION, purchase locally, serial no. 008731 and below

3шт.

26

1002838C3

SHIELD

COVER, alternator

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

27

1064599C4

PLATE

baffle front

1шт.

1015683C1

BOLT

M8 x 40

2шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

1057336C1

SPACER

2шт.

28

CUSHION, purchase locally, serial no. 008731 and below

1шт.

29

CUSHION, purchase locally, serial no. 008731 and below

1шт.

30

CUSHION, purchase locally, serial no. 008731 and below

2шт.

31

1058831C1

PLATE

baffle rear, serial no. 008731 and below

1шт.

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20

2шт.

897948C1

WASHER

M8 lock

2шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 PHC hdn

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

32

1430636R3

PANEL

instrument

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, M6 x 12 flange

6шт.

1004596C1

WASHER

M6 x M15 x M2

6шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

25532R1

WASHER

.281 x .625 x .065 PHC hdn

2шт.

33

1434427R1

ROD

hood support, serial no. 008414 and above

1шт.

34

1434176R1

NUT

hood support rod, serial no. 008414 and above

1шт.
