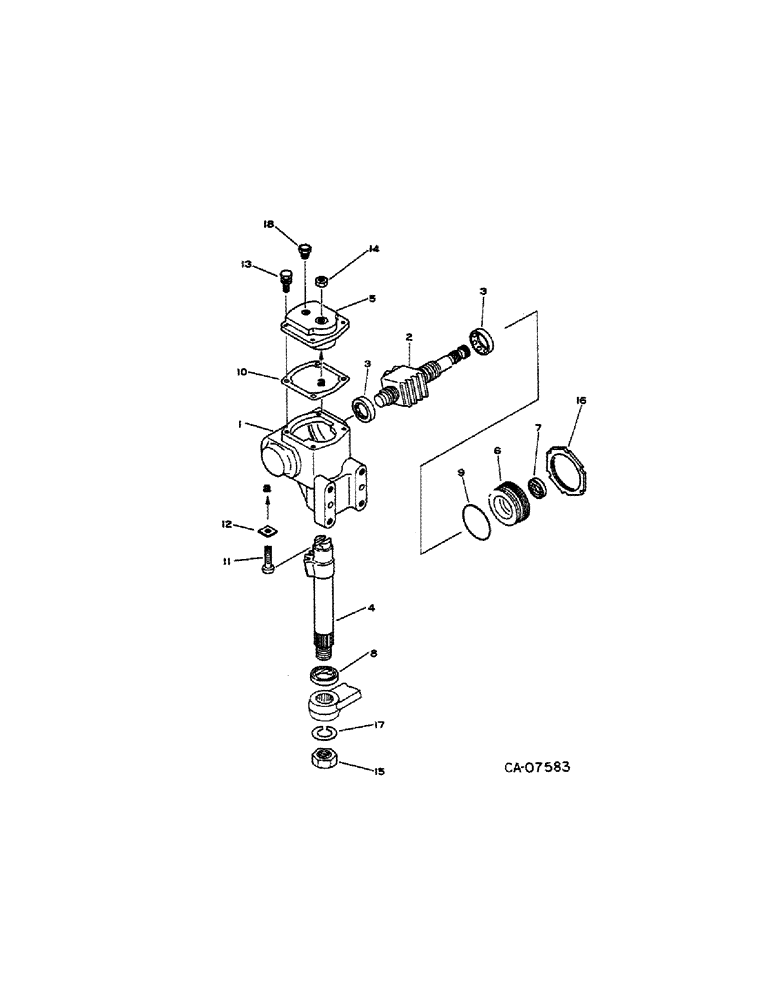

Запчасти Case IH 274 (05-04) - STEERING, STEERING GEAR BOX (04) - STEERING

1060717C91

BOX

STEERING GEAR BOX ASSY

1шт.

1

BOX, steering box assy (NSS)

1шт.

2

1432160R91

SHAFT

BALL NUT ASSY

1шт.

3

973546C1

THRUST BEARING,41 mm OD x 12 mm

ball

2шт.

4

1432161R1

LEVERSHAFT

SHAFT, sector

1шт.

5

1432162R91

COVER

side

1шт.

6

1432163R1

COVER

1шт.

7

1432164R1

OIL SEAL

oil

1шт.

8

973552C1

OIL SEAL

SEAL, oil

1шт.

9

1432166R1

O-RING,58.5mm ID x 2mm Width

O-RING

1шт.

10

1432167R1

GASKET

1шт.

11

973548C1

ADJUSTMENT SCREW,M10 x 40mm

SCREW, adjust

1шт.

12

973549C1

SHIM

adjust screw

1шт.

13

1432169R91

BOLT

& WASHER ASSY

1шт.

14

1014947C1

NUT

M10

1шт.

15

1014949C1

NUT

M22

1шт.

16

1432170R1

NUT

lock

1шт.

17

30510R1

LOCK WASHER,M22

WASHER, lock M22

1шт.

18

1064664C1

PLUG

BREATHER

1шт.
