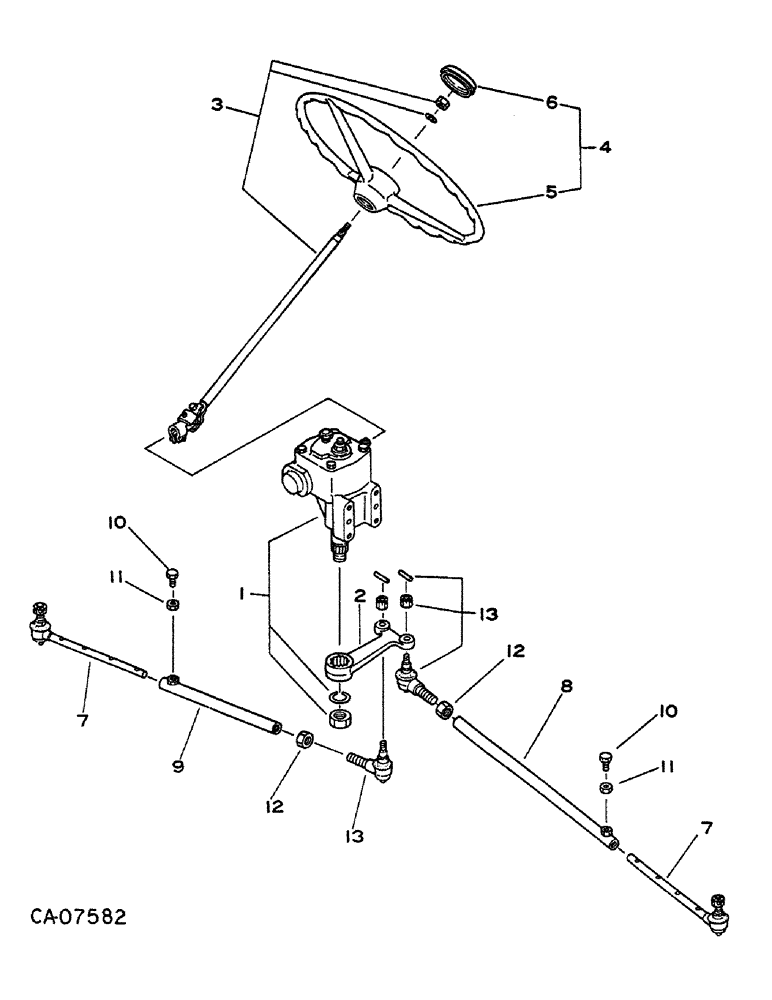

Запчасти Case IH 274 (05-02) - STEERING, STEERING LINKAGE (04) - STEERING

1

1060717C91

BOX

STEERING GEAR BOX ASSY, for components see detail list

1шт.

1006959C1

BOLT

M10 x 40

4шт.

WASHER, M10 x M22 x M3.2, purchase locally

4шт.

2

1060716C1

LEVER

center

1шт.

3

1430544R91

JOINT

ASSY, steering

1шт.

1060988C1

BOLT, M8 x 28

2шт.

1060990C1

WASHER, M8 lock

2шт.

1057866C1

NUT

M12

1шт.

1057867C1

WASHER

M12 x M22 x M2.3

1шт.

1060942C1

JOINT

1шт.

4

1059772C1

WHEEL

ASSY, steering

1шт.

5

WHEEL (NSS)

1шт.

6

1430393R1

CAP

1шт.

7

1061139C91

ROD

TIE ROD, inner, composed of

2шт.

1058936C1

CLIP

RING, snap PIN, 3 x 22, purchase locally

2шт.

973358C1

NUT

S, M12

2шт.

973359C1

BOOT

SEAL, dust

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

8

1061141C1

ROD

TIE ROD, outer LH

1шт.

9

1061143C1

ROD

TIE ROD, outer RH

1шт.

10

1002993C1

BOLT

M8 x 25

2шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

12

1014948C1

NUT

M16

2шт.

13

1061131C91

BALL JOINT

JOINT BALL ASSY

2шт.

1058936C1

CLIP

RING, snap

2шт.

973358C1

NUT

M12

2шт.

973359C1

BOOT

SEAL, dust

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
