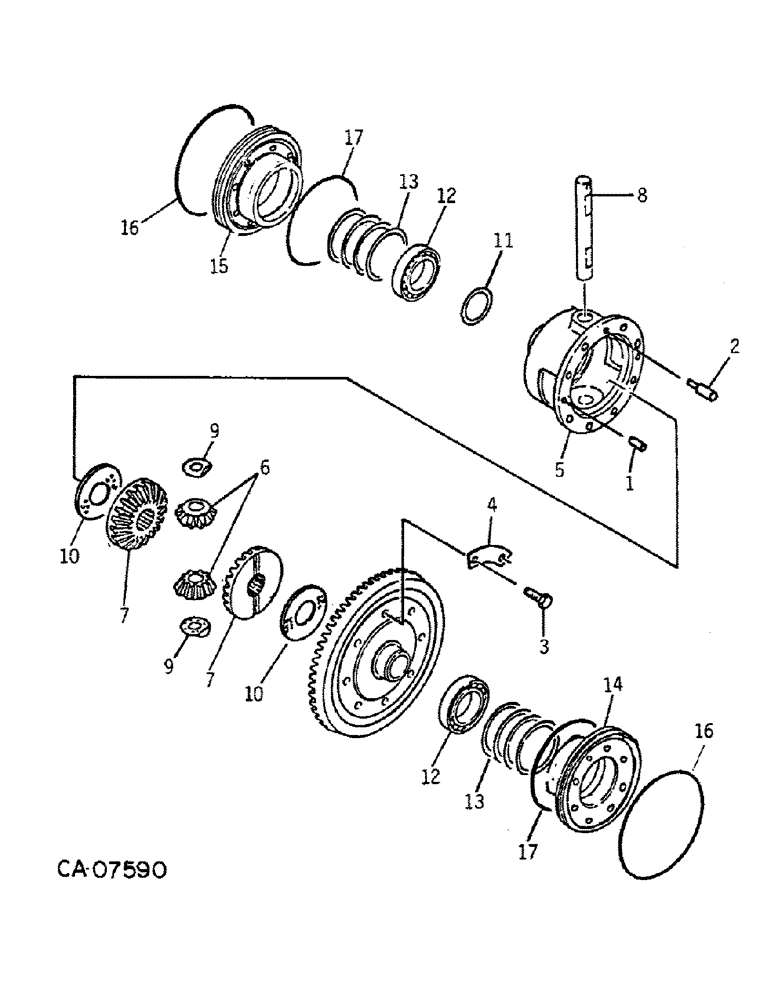

Запчасти Case IH 274 (07-08) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

1

932819R1

DOWEL,M8 x 20

PIN, straight 8.000-8.015 x 20 oval ends

2шт.

2

973686C2

BOLT,28mm L

set

1шт.

3

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

8шт.

4

973687C1

LOCK WASHER

LOCK, bolt

4шт.

5

973688C6

CASE

differential, serial no. 009049 and below

1шт.

5

1436618R1

CASE

differential, serial no. 009050 and above

1шт.

6

984880C91

GEAR

ASSY, pinion, serial no. 009049 and below, composed of (2) gear, pinion (NSS)

1шт.

984881C1

BUSHING

2шт.

6

1010898C1

PINION

GEAR, pinion, serial no. 009050 and above

2шт.

7

984078C2

GEAR

side LH & RH, tractors w/o diff lock

2шт.

7

984078C2

GEAR

side LH, tractors w/diff lock

1шт.

7

973691C4

PINION

GEAR, side RH, tractors w/diff lock

1шт.

8

973692C3

PIN

pinion gear

2шт.

9

984882C1

THRUST WASHER

thrust, serial no. 009049 and below

1шт.

10

974001C2

THRUST WASHER

thrust

1шт.

11

973696C1

WASHER

1шт.

12

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

2шт.

13

973697C1

SHIM

0.05 mm

1шт.

13

973698C1

SHIM

0.2 mm

1шт.

13

973699C1

SHIM

0.3 mm

1шт.

13

973700C1

SHIM

0.5 mm

1шт.

14

1004941C2

CARRIER

RH

1шт.

15

1004942C2

CARRIER

LH

1шт.

1013567C1

BOLT

M8 x 25

1шт.

989463C1

WASHER

M8 x 18 x M2.3

1шт.

16

973703C1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

2шт.

17

973704C1

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

2шт.
