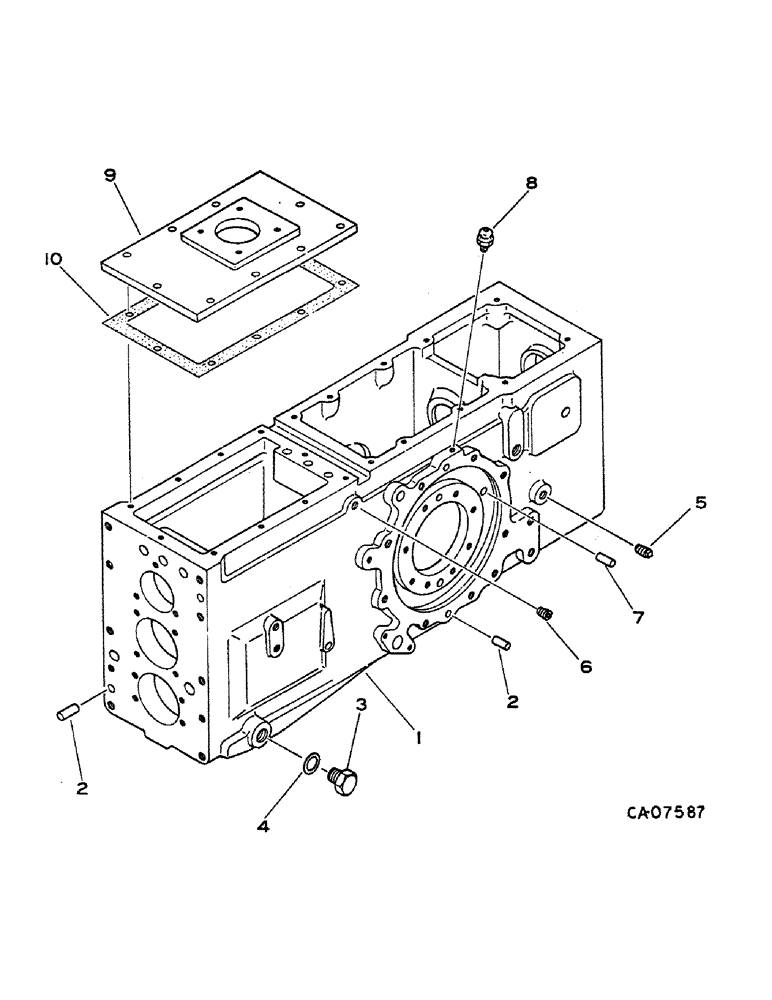

Запчасти Case IH 274 (07-03) - DRIVE TRAIN, REAR FRAME AND CONNECTIONS (04) - Drive Train

1

1430588R3

TRANSMISSION

CASE, transmission, serial no. 009049 and below

1шт.

1

1436651R1

CASE

transmission, serial no. 009050 and above

1шт.

2

1014967C1

PIN

12 x 28 dowel

2шт.

3

979830C1

PLUG

1шт.

4

897433C1

WASHER

seal

1шт.

5

1006088C1

PLUG

1шт.

6

979829C1

PLUG

1шт.

7

1060613C1

PIN

brake

4шт.

8

973641C1

BREATHER

BLEEDER

2шт.

9

1002865C1

COVER

transmission

1шт.

10

973556C1

GASKET

cover

1шт.

1014920C1

BOLT

M8 x 18

10шт.
