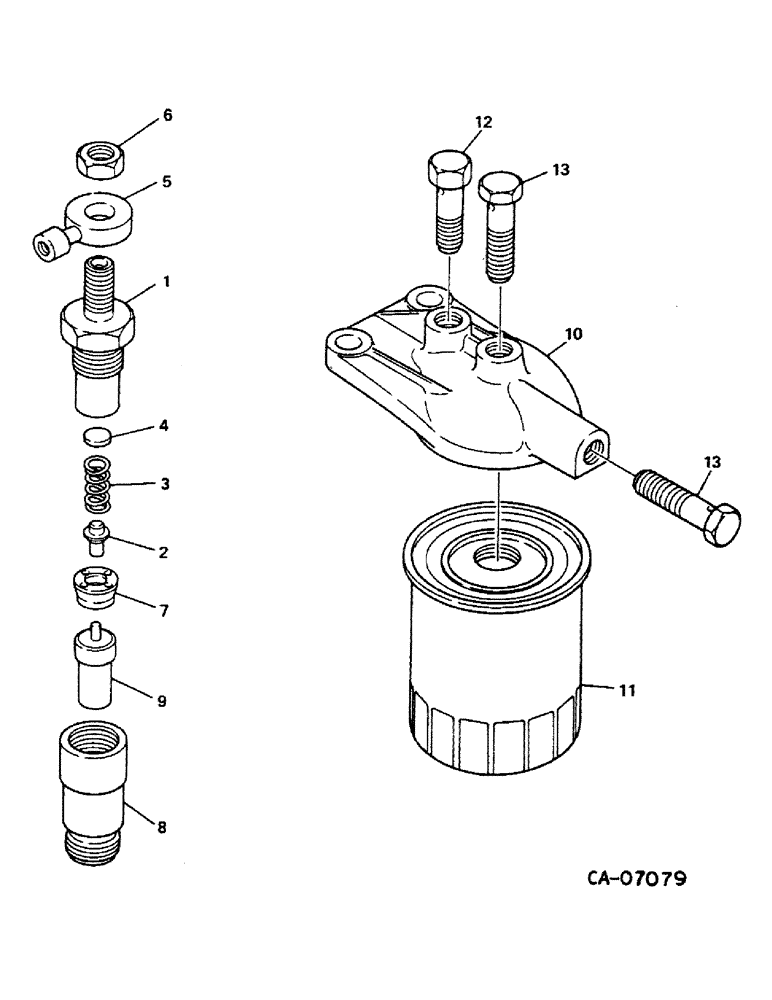

Запчасти Case IH 274 (12-33) - POWER, DIESEL ENGINE, NISSAN, FUEL INJECTION NOZZLE AND FUEL FILTER Power

486813C91

INJECTOR ASSY.

NOZZLE & HOLDER ASSY, composed of ref nos. 1 thru 9 (NSS)

3шт.

1

BODY, order 486813C91 (NSS)

3шт.

2

478294C1

SPINDLE

ROD, push

3шт.

3

478295C1

SPRING

3шт.

4

478296C1

SHIM

WASHER, adjusting 0.50 mm

1шт.

4

1058112C1

WASHER

adjusting 0.65 mm

1шт.

4

478334C1

WASHER

adjusting 0.90 mm

1шт.

4

478352C1

WASHER

adjusting 1.32 mm

1шт.

4

478377C1

WASHER

adjusting 1.82 mm

1шт.

5

486815C1

CONNECTOR, ELEC

JOINT

3шт.

6

486816C1

NUT

3шт.

7

478387C1

SEAT

PIECE, distance

3шт.

8

NUT (NSS)

3шт.

9

478391C91

JET

NOZZLE ASSY

3шт.

1062100C91

FILTER CARTRIDGE

FILTER ASSY, fuel, composed of

1шт.

10

COVER (NSS)

1шт.

11

1058100C1

ELEMENT

CARTRIDGE ASSY

1шт.

12

1058102C1

VALVE

OVERFLOW

1шт.

13

1058106C1

CONNECTOR, ELEC

CONNECTOR

2шт.
