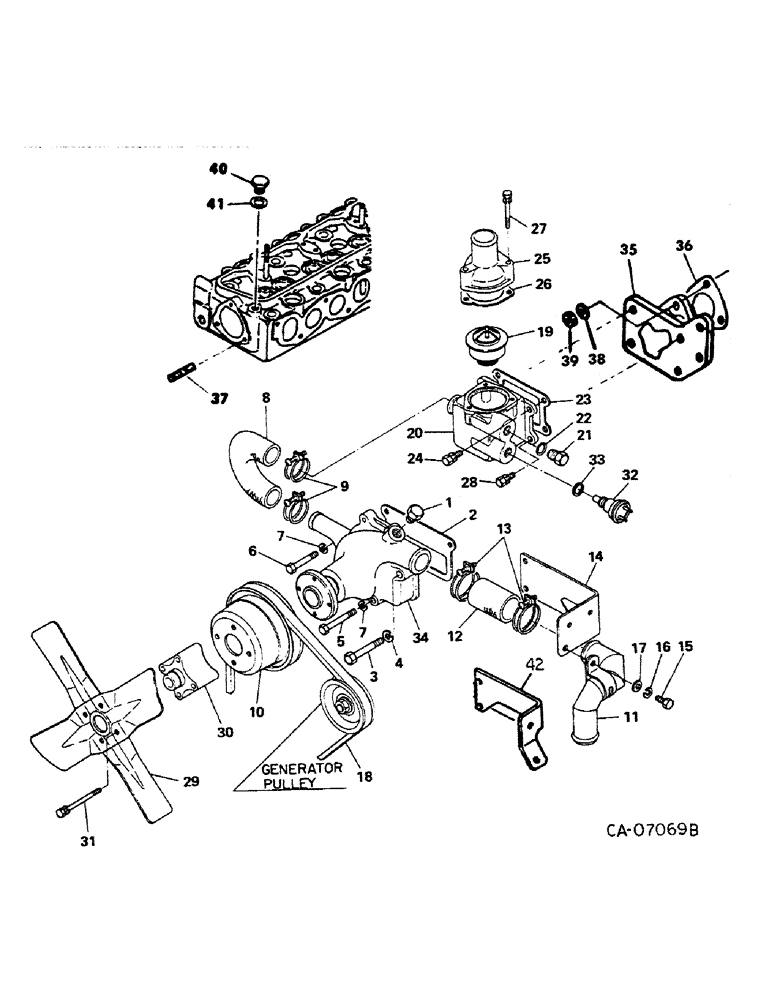

Запчасти Case IH 274 (12-16) - POWER, DIESEL ENGINE, NISSAN, FAN, THERMOSTAT HOUSING AND WATER PUMP Power

1

1058394C1

PLUG

1шт.

2

1058295C1

GASKET

water pump

1шт.

3

1058373C1

BOLT

M10 x 55 mm

1шт.

4

1058389C1

WASHER

M10 lock

1шт.

5

478591C1

BOLT

M8 x 55 mm

1шт.

6

478592C1

BOLT

M8 x 45 mm

1шт.

7

1058388C1

WASHER

M8 lock

2шт.

8

478045C1

HOSE

by-pass

1шт.

9

CLAMP, hose, purchase locally

2шт.

10

1058291C1

PULLEY

fan

1шт.

11

1058306C1

PIPE

water

1шт.

12

407002R1

LARGE HOSE

HOSE, water inlet, furnish from bulk stock, serial no. 007940 and below (Replaces DASHPART)

1шт.

12

407002R1

LARGE HOSE

HOSE, water inlet, furnish from bulk stock, serial no. 007941 and above (Replaces DASHPART)

1шт.

13

CLAMP, hose, purchase locally

2шт.

14

1058305C1

STAY, water pipe, serial no. 007940 and below

1шт.

15

980496C1

BOLT,M8

BOLT, M8 x 16 mm

1шт.

16

1058388C1

WASHER

M8 lock

1шт.

17

1058390C1

WASHER

1шт.

18

1058365C1

BELT

fan

1шт.

19

498231C1

THERMOSTAT

replaces 1058297C1

1шт.

20

1058298C1

HOUSING

thermostat

1шт.

21

1058395C1

PLUG

1шт.

22

1058010C1

GASKET

plug

1шт.

23

1058010C1

GASKET

thermostat housing

1шт.

24

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

25

478111C1

OUTLET

water

1шт.

26

478065C1

GASKET

water outlet

1шт.

27

478112C1

BOLT

WITH WASHER, M8 x 45 mm

3шт.

28

1058369C1

BOLT

WITH WASHER, M8 x 25 mm

2шт.

29

1058294C1

FAN

ASSY.

1шт.

30

1058292C1

SPACER

SCACER, fan

1шт.

31

1058375C1

BOLT

WITH WASHER, M6 x 55 mm

4шт.

32

1058241C1

SWITCH

thermostat

1шт.

33

1058404C1

GASKET

switch

1шт.

34

1058287C91

PUMP

ASSY, water, for components see list of parts under details of water pump

1шт.

35

1438692R1

SPACER

housing, engine serial no. 009557 and above

1шт.

36

1438693R1

GASKET

spacer, engine serial no. 009557 and above

1шт.

37

1438733R1

STUD

spacer, engine serial no. 009557 and above

3шт.

38

1058388C1

WASHER

M8 lock, engine serial no. 009557 and above

1шт.

39

30167R1

NUT,M8, Cl 10

Replaces 478 127 C1, Engine serial no. 009557 and above M8, Cl 10

3шт.

40

1058395C1

PLUG

screw, engine serial no. 009557 and above

1шт.

41

1058404C1

GASKET

plug, engine serial no. 009557 and above

1шт.

42

1438251R1

BRACKET

STAY, water pipe, serial no. 007941 and above

1шт.
