Запчасти Case IH 274 (12-14) - POWER, DIESEL ENGINE, NISSAN, CAMSHAFT AND VALVES Power

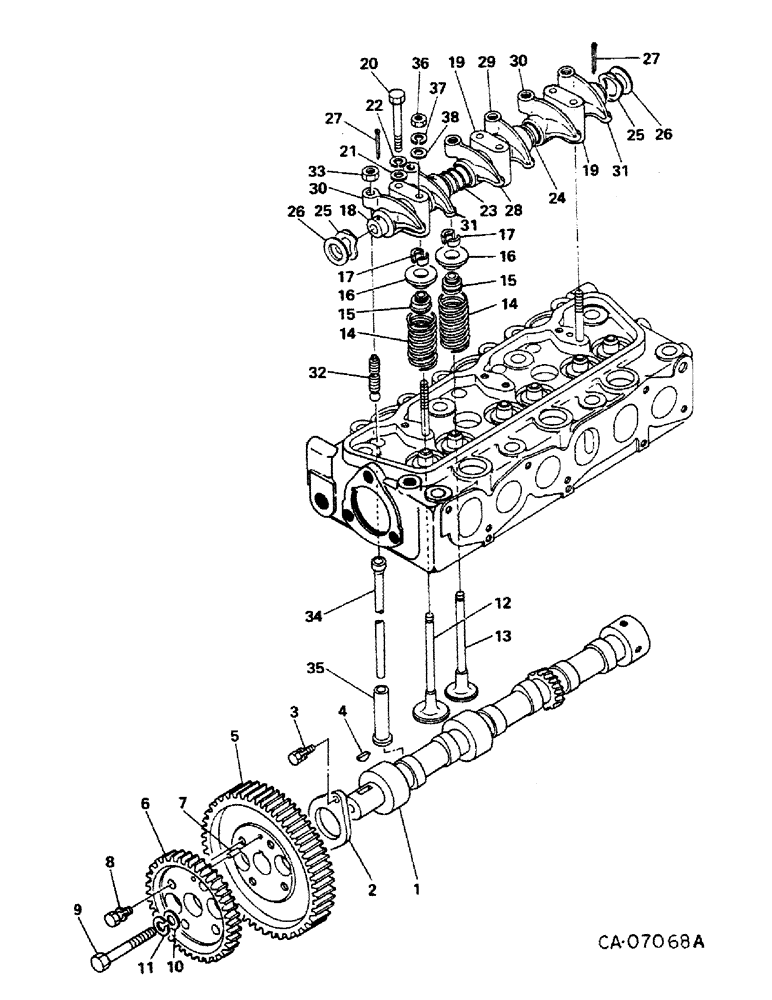

Схема запчастей Case IH 274 - (12-14) - POWER, DIESEL ENGINE, NISSAN, CAMSHAFT AND VALVES Power
25
10
32
6
22
8
30
20
31
9
17
27
12
21
14
29
23
3
37
15
38
26
35
28
30
17
31
16
19
24
19
15
1
5
13
7
33
18
25
2
16
14
4
36
27
34
11
26

Артикул

Название

Примечание

Количество

1

1058045C1

CAMSHAFT

1шт.

2

478175C1

FLANGE

PLATE, lock

1шт.

3

478176C1

BOLT

W/WASHER, M6 x 16 mm

2шт.

4

478177C1

KEY

woodruff

1шт.

5

486338C1

CAM

GEAR, cam

1шт.

6

478179C1

GEAR

idler

1шт.

7

1436025R1

PIN

straight, replaces 478087C1

1шт.

8

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

9

478181C1

BOLT, M10 x 65 mm

1шт.

10

478182C1

WASHER

1шт.

11

1058389C1

WASHER

M10 lock

1шт.

12

478026C1

VALVE

intake, replaces 1058060C1

3шт.

12

478027C1

VALVE

intake (0.2 mm OS), replaces 1058748C1

3шт.

12

478028C1

VALVE

intake (0.4 mm OS), replaces 1058749C1

3шт.

13

1058061C2

VALVE

exhaust

3шт.

13

1058750C1

VALVE

exhaust (0.2 mm OS)

3шт.

13

1058751C1

VALVE

exhaust (0.4 mm OS)

3шт.

14

1438463R1

SPRING

valve, replaces 478183C1

6шт.

15

478184C1

RING, LOCKING

SEAL, valve stem

6шт.

16

478038C1

VALVE

RETAINER, valve

6шт.

17

1058062C1

COLLAR

split

12шт.

18

1058063C1

SHAFT

ASSY, rocker

1шт.

19

478187C1

BRACKET

rocker shaft

3шт.

20

478188C1

BOLT

M8 x 60 mm

4шт.

21

1058390C1

WASHER

4шт.

22

1058388C1

WASHER

M8 lock

4шт.

23

478189C1

SPRING

inside

1шт.

24

478190C1

SPRING

inside

1шт.

25

478191C1

VALVE SPRING

SPRING, outside

2шт.

26

478192C1

WASHER

rocker shaft

2шт.

27

PIN, COT, purchase locally

2шт.

28

478021C1

ARM

ROCKER, valve A

1шт.

29

478022C1

ARM

ROCKER, valve B

1шт.

30

478023C1

VALVE

ROCKER, valve C

2шт.

31

478024C1

VALVE

ROCKER, valve D

2шт.

32

478193C1

SCREW

valve adj.

6шт.

33

478194C1

NUT

adj screw

6шт.

34

478025C1

ROD

push

6шт.

35

478032C1

TAPPET

LIFTER, valve

6шт.

36

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

37

1058388C1

WASHER

M8 lock

2шт.

38

1058390C1

WASHER

2шт.

Выбрано товаров: 42
