(12-13) - POWER, DIESEL ENGINE, NISSAN, CLUTCH HOUSING ADAPTER

Запчасти Case IH 274 (12-13) - POWER, DIESEL ENGINE, NISSAN, CLUTCH HOUSING ADAPTER Power

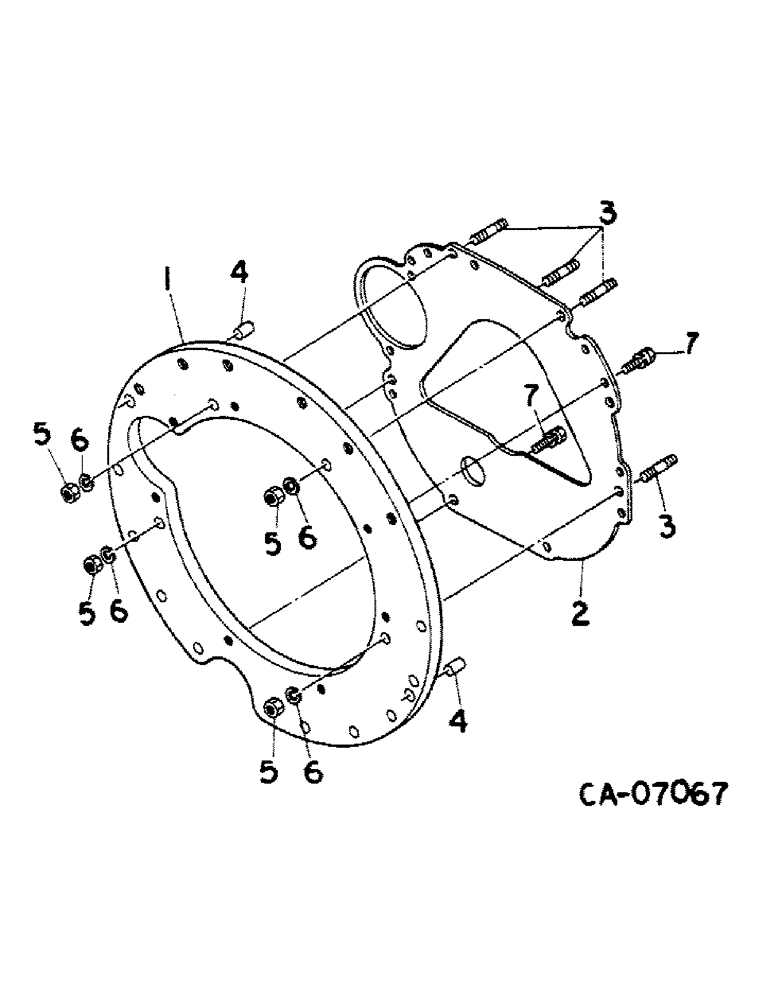

Схема запчастей Case IH 274 - (12-13) - POWER, DIESEL ENGINE, NISSAN, CLUTCH HOUSING ADAPTER Power
6
3
6
4
6
5
5
5
2
5
3
6
4
7
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1058337C2

ADAPTER, clutch housing

1шт.

2

1058336C1

PLATE

engine, serial no. 007940 and below

1шт.

2

1436761R1

PLATE

engine, serial no. 007941 and above

1шт.

3

1436036R1

STUD

block upper, replaces 1058397C1

4шт.

4

478161C1

PIN

straight

2шт.

5

30168R1

NUT,M10, Cl 10

M10 PHC class 10, replaces 478252C1

4шт.

6

1058389C1

WASHER

M10 lock

4шт.

7

478135C1

BOLT

WITH WASHER, engine plate, replaces 503046C1

3шт.
