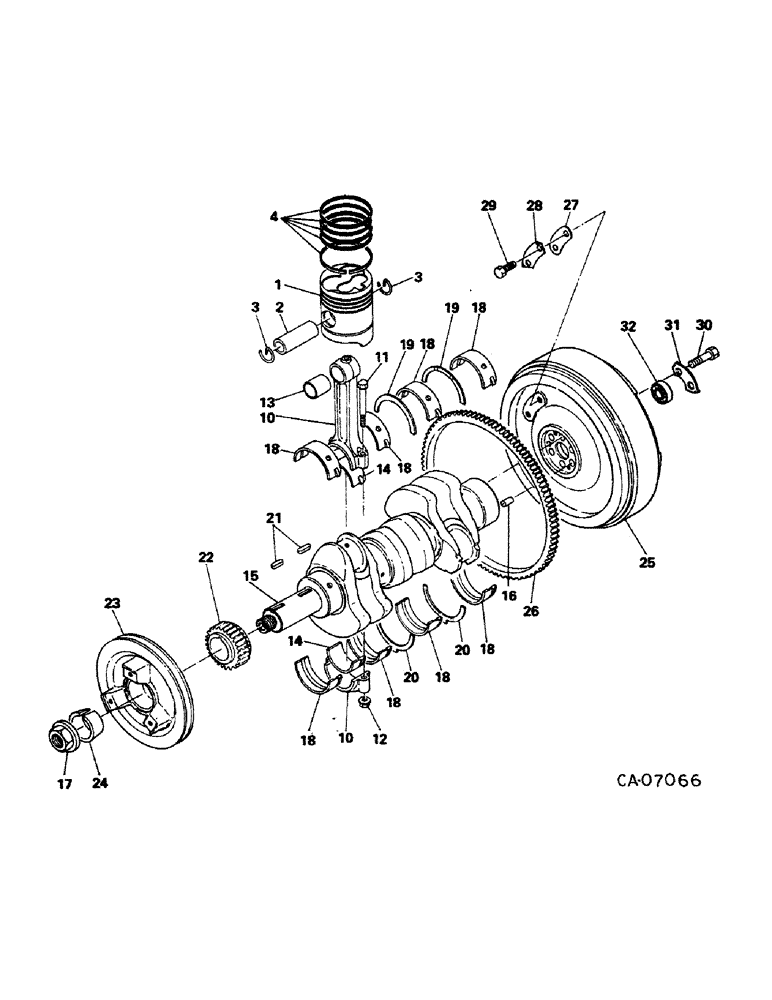

Запчасти Case IH 274 (12-12) - POWER, DIESEL ENGINE, NISSAN, CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

478056C91

PISTON

SET (Ixumi) OR

3шт.

1

1058015C91

PISTON ASSY.

PISTON SET (Atsugu), composed of

3шт.

2

478150C1

BOLT

PIN, piston

3шт.

3

478151C1

RING

pin retaining

6шт.

4

1058016C91

RING

SET, piston

1шт.

5

(Not used this application)

1шт.

6

(Not used this application)

1шт.

7

(Not used this application)

1шт.

8

(Not used this application)

1шт.

9

(Not used this application)

1шт.

10

478057C91

ROD, CONNECTING

ROD ASSY, connecting, replaces 1058017C91, composed of

3шт.

11

478152C1

BOLT

connecting rod

6шт.

12

478153C1

NUT

connecting rod

6шт.

13

478154C1

BUSHING

3шт.

14

1058018C1

HALF-BEARING, CRANKS

connecting rod, standard (pg/KS25 daido metal make), or

6шт.

14

478155C1

BEARING,CON.ROD

BEARING, connecting rod, standard (F780 Nihon Diaclevite make)

6шт.

14

1058416C1

BEARING LINER

BEARING, connecting rod, 0.25 mm undersize

6шт.

14

1058417C1

BEARING LINER

connecting rod, 0.05 mm undersize

6шт.

14

1058418C1

BEARING

connecting rod, 0.75 mm undersize

6шт.

14

1058419C1

BEARING

connecting rod, 1.00 mm undersize

6шт.

15

1058019C91

CRANKSHAFT

ASSY, composed of (Replaces 1058401C1)

1шт.

16

1058401C1

PIN

straight

1шт.

17

478169C1

NUT

crankshaft

1шт.

18

1058020C1

BEARING

crankshaft, standard

8шт.

18

1058021C1

CRANKSHAFT BEARING

BEARING, crankshaft, 0.25 mm undersize

8шт.

18

1058022C1

BEARING

crankshaft, 0.50 mm undersize

8шт.

18

1058023C1

BEARING

crankshaft, 0.75 mm undersize

8шт.

18

1058024C1

BEARING

crankshaft, 1.00 undersize

8шт.

19

478015C1

WASHER

upper thrust 2.325 mm

2шт.

19

1058030C1

WASHER, THRUST

WASHER, upper thrust 2.350 mm

2шт.

19

1058031C1

WASHER

upper thrust 2.375 mm

2шт.

20

1058027C1

WASHER

lower thrust 2.325 mm

2шт.

20

1058028C1

WASHER, THRUST

WASHER, lower thrust 2.350 mm

2шт.

20

1058029C1

WASHER

lower thrust 2.375 mm

2шт.

21

1058035C1

KEY

crank

2шт.

22

1058051C1

GEAR

crank

1шт.

23

1438734R1

PULLEY

crankshaft, replaces 1058037C1

1шт.

24

1058038C1

BUSHING

cone

1шт.

25

1058039C91

FLYWHEEL

W/RING GEAR

1шт.

26

1058040C1

GEAR WHEEL

GEAR, ring

1шт.

27

1058042C1

WEIGHT

counter

1шт.

28

WASHER, locking (NSS)

1шт.

29

1438464R1

BOLT (SPREADER)

BOLT, counter weight, replaces 980497C1

1шт.

30

1058366C1

BOLT

M12 x 35 mm

6шт.

31

1058041C1

LARGE PLATE

WASHER, locking

3шт.

32

1058077C91

BALL BEARING

ball

1шт.
