(12-10) - POWER, DIESEL ENGINE, NISSAN, OIL PAN, OIL PUMP AND OIL LEVEL GAUGE

Запчасти Case IH 274 (12-10) - POWER, DIESEL ENGINE, NISSAN, OIL PAN, OIL PUMP AND OIL LEVEL GAUGE Power

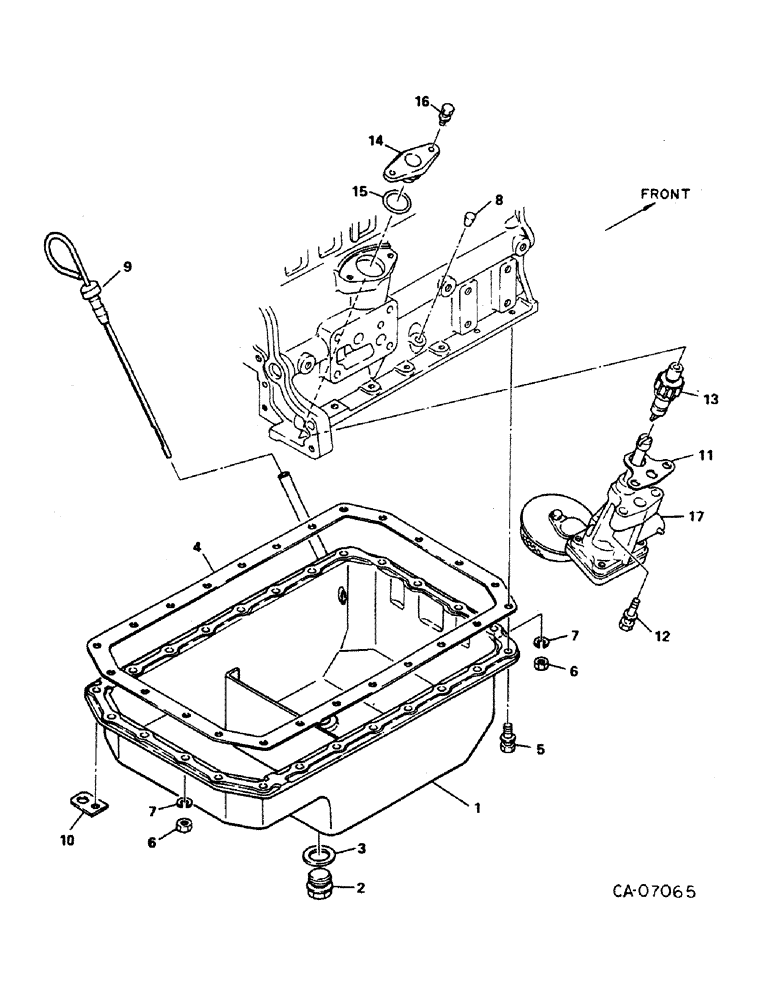

Схема запчастей Case IH 274 - (12-10) - POWER, DIESEL ENGINE, NISSAN, OIL PAN, OIL PUMP AND OIL LEVEL GAUGE Power
8
5
16
1
14
7
11
17
6
12
15
3
6
13
2
7
10
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1058012C1

PAN

ASSY, oil

1шт.

2

478563C1

PLUG

drain

1шт.

3

478564C1

DISC

WASHER, drain plug

1шт.

4

1058013C1

GASKET

oil pan

1шт.

5

1058369C1

BOLT

M8 x 25 mm

14шт.

6

30167R1

NUT,M8, Cl 10

M8 PHC class 10, Replaces 478127C1

10шт.

7

1058388C1

WASHER

M8 lock

10шт.

8

1058088C1

PLUG

taper

1шт.

9

1058086C1

GAUGE ASSY.

GAUGE ASSY, oil level

1шт.

10

1058300C1

CLAMP

hose

1шт.

11

1058082C1

GASKET

oil pump

1шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8, Replaces 1058378C1 & 487296C1 by also ordering washer, 1058388C1

10шт.

1058388C1

WASHER

M8 lock

2шт.

13

1058079C1

SPINDLE

ASSY

1шт.

14

1058308C1

SUPPORT

spindle

1шт.

15

478561C1

RING

PACKING, support

1шт.

16

478562C1

BOLT

M6 x 16 mm

2шт.

17

1058078C91

PUMP

ASSY, oil (for components see list of parts under details of oil pump)

1шт.
