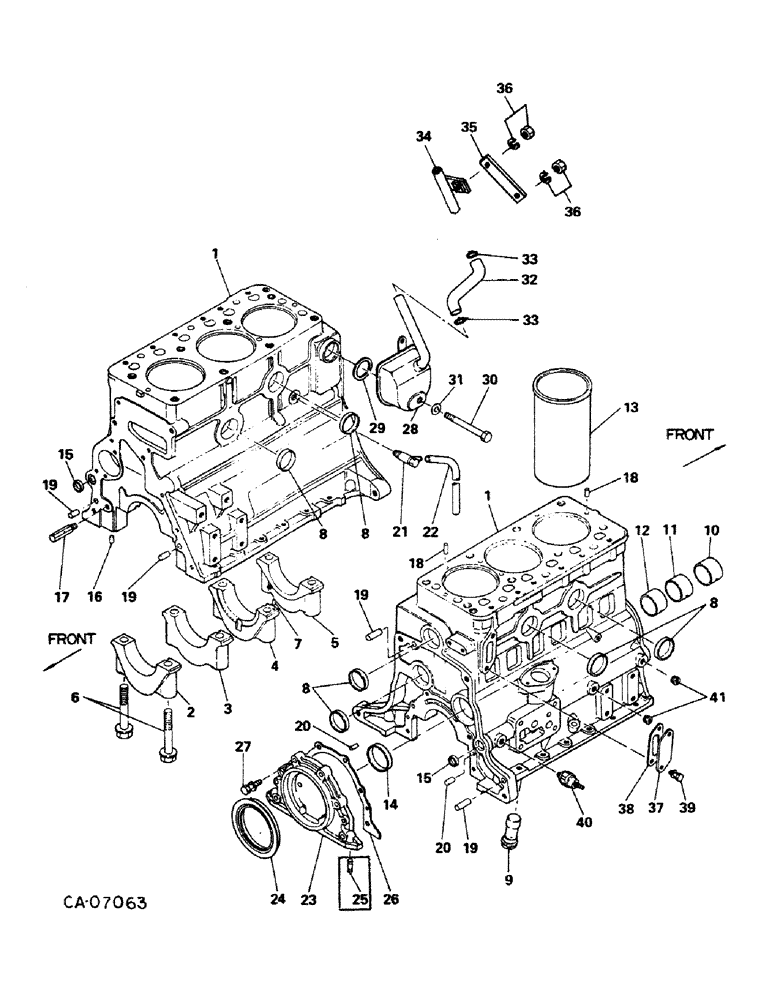

Запчасти Case IH 274 (12-06) - POWER, DIESEL ENGINE, NISSAN, CYLINDER BLOCK AND CONNECTIONS Power

1

1438694R91

BLOCK

ASSY, cylinder, engine serial no. 009557 and above, composed of ref. nos. 2 - 20

1шт.

1

1058003C91

BLOCK

ASSY, cylinder, engine serial no. 009556 and below, composed of

1шт.

2

CAP, main brg (NSS)

1шт.

3

CAP, main brg (NSS)

1шт.

4

CAP, main brg (NSS)

1шт.

5

CAP, main brg (NSS)

1шт.

6

1058032C1

BOLT

bearing cap

8шт.

7

1436020R1

PIN

straight, replaces 1058398C1

1шт.

8

1433045R1

PLUG

welch, replaces 478081C1

7шт.

9

1436034R1

BUSHING

oil pump, replaces 1058080C1

1шт.

1058046C91

BUSHING

-SET, cam-std

1шт.

1433046R91

BUSHING

-SET, cam-U.S. 0.25

1шт.

1433047R91

BUSHING

-SET, cam U.S. 0.05, composed of ref 10, 11 & 12

1шт.

10

BUSHING, cam front (NSS)

1шт.

11

BUSHING, cam center (NSS)

1шт.

12

BUSHING, cam rear (NSS)

1шт.

13

478052C1

SLEEVE CYLINDER

SLEEVE, cylinder

3шт.

14

478080C1

PLUG

taper

1шт.

15

574931C1

PLUG

welch

2шт.

16

478083C1

PLUG

taper

1шт.

17

1438190R1

JET

oil, replaces 478084C2

1шт.

18

1436021R1

PIN

straight, replaces 1058400C1

2шт.

19

574930C1

DOWEL, cylinder

4шт.

20

1436022R1

PIN

straight, replaces1058399C1

2шт.

21

478093C1

COCK, DRAIN

COCK, water drain

1шт.

22

1058299C1

HOSE

vinyl

1шт.

23

1058033C1

RETAINER, oil seal, serial no. 007940 and below

1шт.

23

1436700R1

RETAINER

oil seal, serial no. 007941 and above

1шт.

24

1436035R1

SEAL

oil, replaces 1058026C1

1шт.

25

1436023R1

STUD

replaces 1058396C1, engine serial no. 009556 an below

4шт.

26

1436658R1

GASKET

replaces 1058034C1

1шт.

27

1058369C1

BOLT

M8 x 25 mm, replaces 478142C1

6шт.

28

1058007C1

BREATHER

ASSY

1шт.

29

1058007C1

BREATHER

PACKING

1шт.

30

1058005C1

BOLT

1шт.

31

1058094C1

WASHER

seal

1шт.

32

1058006C1

HOSE

rubber

1шт.

33

CLAMP, purchase locally

2шт.

34

1058406C1

PIPE

breather

1шт.

35

1058352C1

BRACE

STAY

1шт.

36

478135C1

BOLT

M8 x 16 mm

2шт.

37

1058302C1

COVER

blind

1шт.

38

1058301C1

GASKET

1шт.

39

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8, Replaces 478109C1

2шт.

40

478097C1

TRANSMITTER

SWITCH ASSY, oil pressure

1шт.

41

1058362C1

PLUG

oil gallery

2шт.
