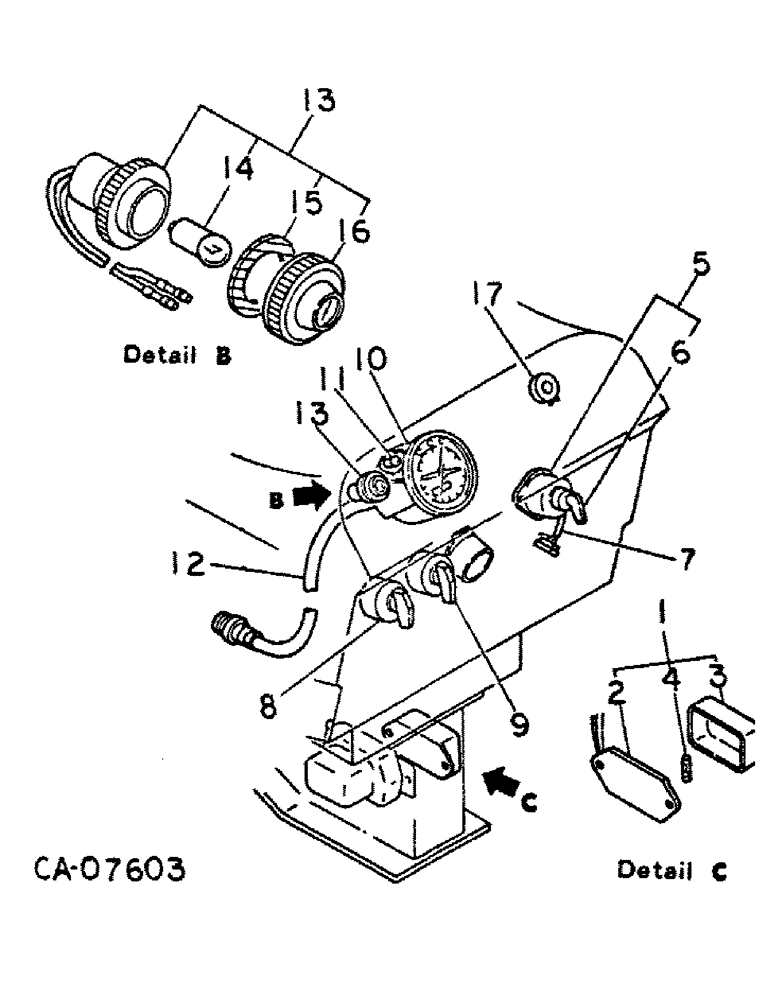

Запчасти Case IH 274 (11-01) - INSTRUMENTS, INSTRUMENT PANEL Instruments

1

1064550C1

BOX, FUSE

FUSE BOX ASSY

1шт.

980911C1

SCREW M5 x 16 R/HDCR

2шт.

978125C1

WASHER

M5 lock

2шт.

2

1064551C1

BODY

1шт.

3

1064552C1

COVER

1шт.

4

9426334

FUSE,10 Amp, Type 3AG

3AG 10 ampres, replaces 1061104C1 and 867248C1

6шт.

5

886604H3

IGNITION SWITCH

SWITCH ASSY, starting

1шт.

6

973742C1

KEY

1шт.

7

1431624R1

HARNESS

switch

1шт.

8

973762C2

LIGHT SWITCH

SWITCH, lighting

1шт.

9

1014563C1

FLASHER SWITCH

SWITCH, flasher warning

1шт.

979538C1

SCREW

M3 x 6

1шт.

10

1060257C91

TACHOMETER

ASSY W/BULB

1шт.

11

897259C1

LAMP

BULB

4шт.

12

1061972C1

CABLE

WIRE, tachometer

1шт.

13

1058550C91

LAMP

LIGHT ASSY, low fuel

1шт.

14

897259C1

LAMP

BULB

1шт.

15

GASKET, order light assy (NSS)

1шт.

16

LENS, order light assy (NSS)

1шт.

17

1061442C1

LIGHT

SIGNAL, glow

1шт.
