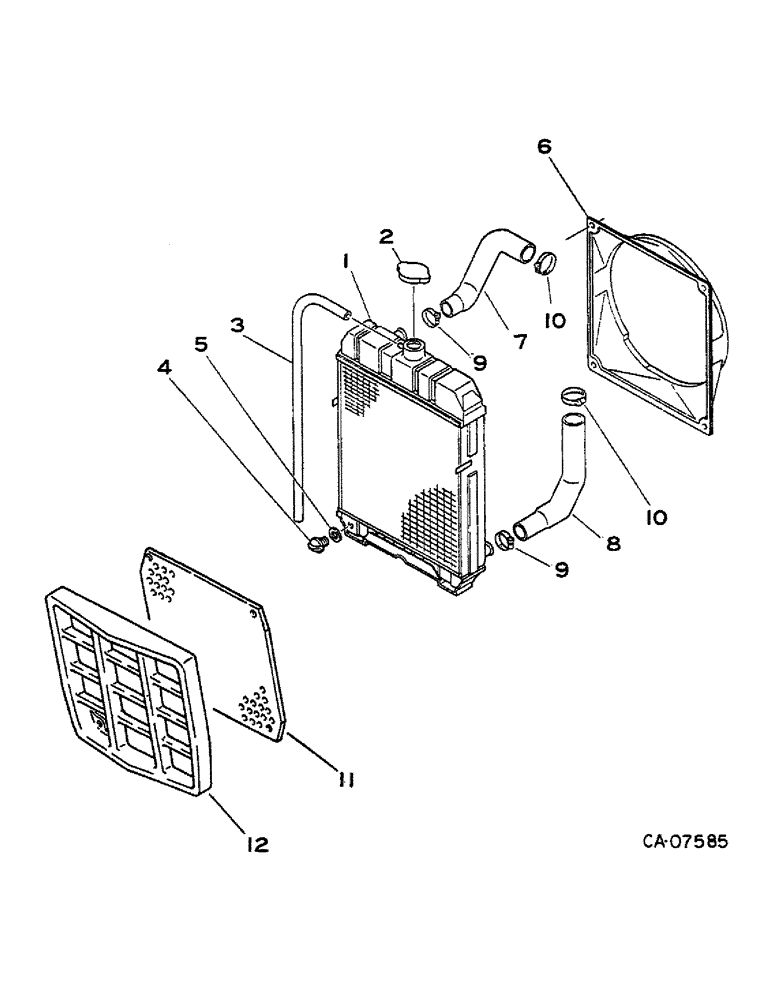

Запчасти Case IH 274 (06-01) - COOLING, RADIATOR, GRILLE AND SCREEN Cooling

1

1057343C1

RADIATOR

1шт.

1014933C1

BOLT

M10 x 20

2шт.

980493C1

WASHER

M10 lock

2шт.

2

974063C1

CAP

radiator

1шт.

3

974229C1

TUBE

overflow

1шт.

4

974062C1

COCK

drain

1шт.

5

974230C1

GASKET

drain cock

1шт.

6

1064670C1

SHROUD

1шт.

980496C1

BOLT,M8

BOLT, M8 x 16

2шт.

1014987C1

WASHER

M8 x M18 x M1.0

2шт.

897948C1

WASHER

M8 lock

2шт.

7

1064579C1

RADIATOR HOSE,27.00 mm ID, 33.00 mm ID x 180.00 mm

27.00 mm ID, 33.00 mm ID X 180.00, Upper, Tractors w/Serial No. 009145 and Below

1шт.

7

1438669R1

HOSE,27mm ID, 33mm ID x 155 L

RADIATOR HOSE, , Upper, Tractors w/Serial No. 009146 and Above 27.00 mm ID, 33.00 mm ID x 155.00

1шт.

8

1064580C1

RADIATOR HOSE,27.00 mm ID, 33.00 mm ID x 250.00 mm

27.00 mm ID, 33.00 mm ID X 250.00, Lower

1шт.

9

CLAMP, 027040, purchase locally

2шт.

10

CLAMP, 035050, purchase locally

2шт.

11

974006C2

SCREEN

grille

1шт.

12

974007C3

GRILLE ASSY

GRILLE, radiator

1шт.

1014738C4

BOLT, M6 x 16 flange

4шт.
