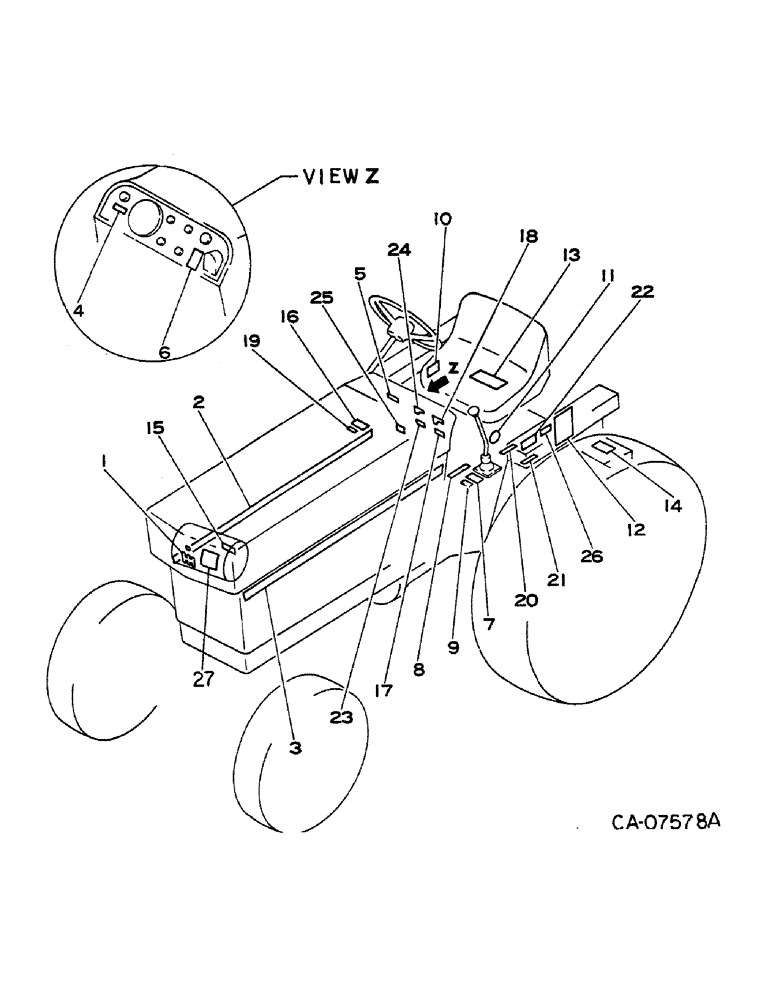

Запчасти Case IH 274 (02-04) - MISCELLANEOUS, PRODUCT GRAPHICS Accessories & Attachments / Miscellaneous
№
Артикул
Название
Примечание
Количество
1433403R92
PRODUCT GRAPHIC
PACKAGE, product graphics consists of reference numbers 2 - 27, tractors w/serial no. 008731 and below
1шт.
1437896R91
DECAL
PACKAGE, product graphics consists of ref Nos. 2 - 27, tractors w/serial no. OO8732 and above
1шт.
1
120397C1
EMBLEM CASE/IH
PRODUCT GRAPHIC, IH, replaces 529479R1 by also ordering two screws, 14322066R1 for tractors w/serial no. OO8731 and below
1шт.
445165
NUT,5/32", Push-on
5/32 med PHC spr style I, used only w/product graphic, 529479R1
2шт.
1432066R1
SCREW
IH product graphic, used w/product graphic, 120397C1
2шт.
2
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, 274 stripe RH
1шт.
3
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, 274 stripe LH
1шт.
4
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, low fuel symbols
1шт.
5
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, main switch
1шт.
6
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, throttle control
1шт.
7
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, shift pattern
1шт.
8
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, speed range
1шт.
9
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, park brake
1шт.
10
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, important ht oil
1шт.
11
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, drop rate control
1шт.
12
1135087R1
PRODUCT GRAPHIC
caution operator
1шт.
13
120391C1
DECAL
PRODUCT GRAPHIC, caution operator
1шт.
14
64553C2
PRODUCT GRAPHIC
caution power
1шт.
15
1434136R1
PRODUCT GRAPHIC
pressure cooling
1шт.
16
(Not used this application)
1шт.
17
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, lighting switch
1шт.
18
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, lighting switch
1шт.
19
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, diesel
1шт.
20
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, hitch control
1шт.
21
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, aux. control
1шт.
22
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, PTO control
1шт.
23
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, flasher switch
1шт.
24
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, flasher switch
1шт.
25
NSS
NOT SOLD SEPARAT
PLATE, engine stop
1шт.
26
NSS
NOT SOLD SEPARAT
PRODUCT GRAPHIC, RPM for PTO use
1шт.
27
1135227R1
PRODUCT GRAPHIC
starting warning
1шт.
Выбрано товаров: 31
