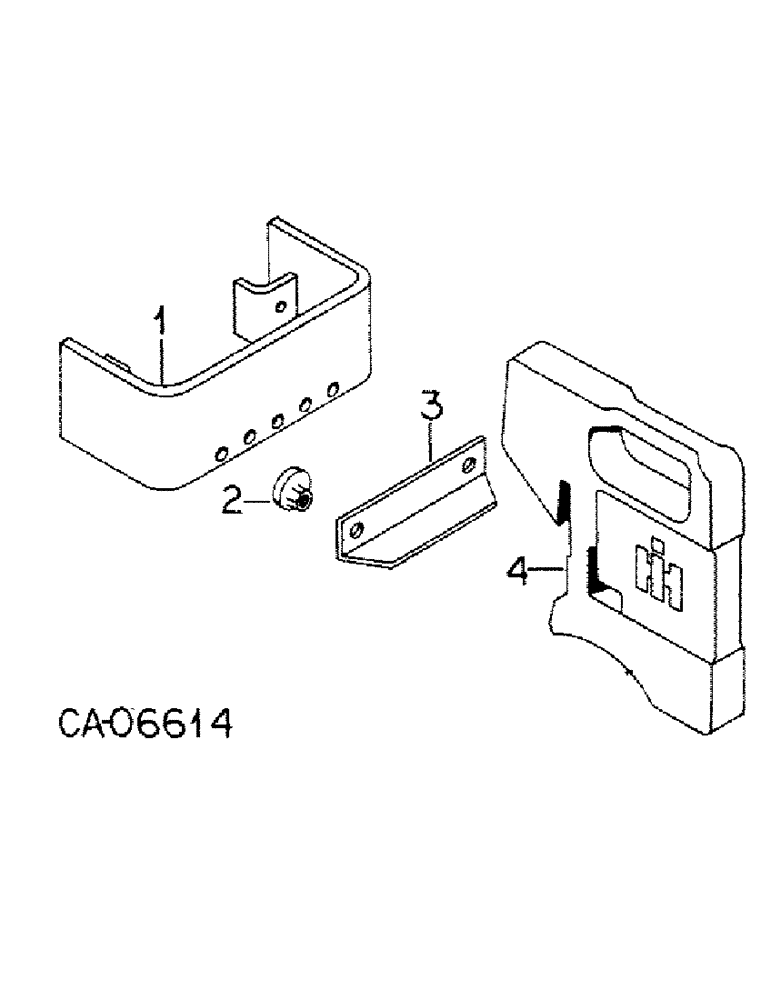

Запчасти Case IH 274 (02-03) - MISCELLANEOUS, FRONT END WEIGHTS, SUITCASE TYPE Accessories & Attachments / Miscellaneous

1

1004989C1

BRACKET

weight mounting

1шт.

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

14-2.00 x 40 mm

2шт.

933967R1

LOCK WASHER,M14

WASHER, 14MM lock

2шт.

2

74202C1

CAM

weight locking, replaces 536044R1

2шт.

3

1004992C1

BAR

front weight

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

2шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

2шт.

4

71199C1

WEIGHT

33kg (73 lbs)

3шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS), product graphics

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS), product graphics

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS), product graphics

1шт.

547495R92

DECAL KIT

PACKAGE, international, consists of (2) international 8.56 x .56 (NSS), (2) international 14.06 x .94 (NSS), (2) international 23.12 x 1.50 (NSS), (2) international 35.12 x 2.25 (NSS), product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS), product graphics

1шт.
